Disassembly and reassembly
Next steps
1. Install the metal shield.
2. Install the speaker.
3. Install the back cover.
4. Install the stand.
5. Follow the procedure in After working inside your monitor.
Keypad board
Removing the keypad board
Prerequisites
1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
About this task

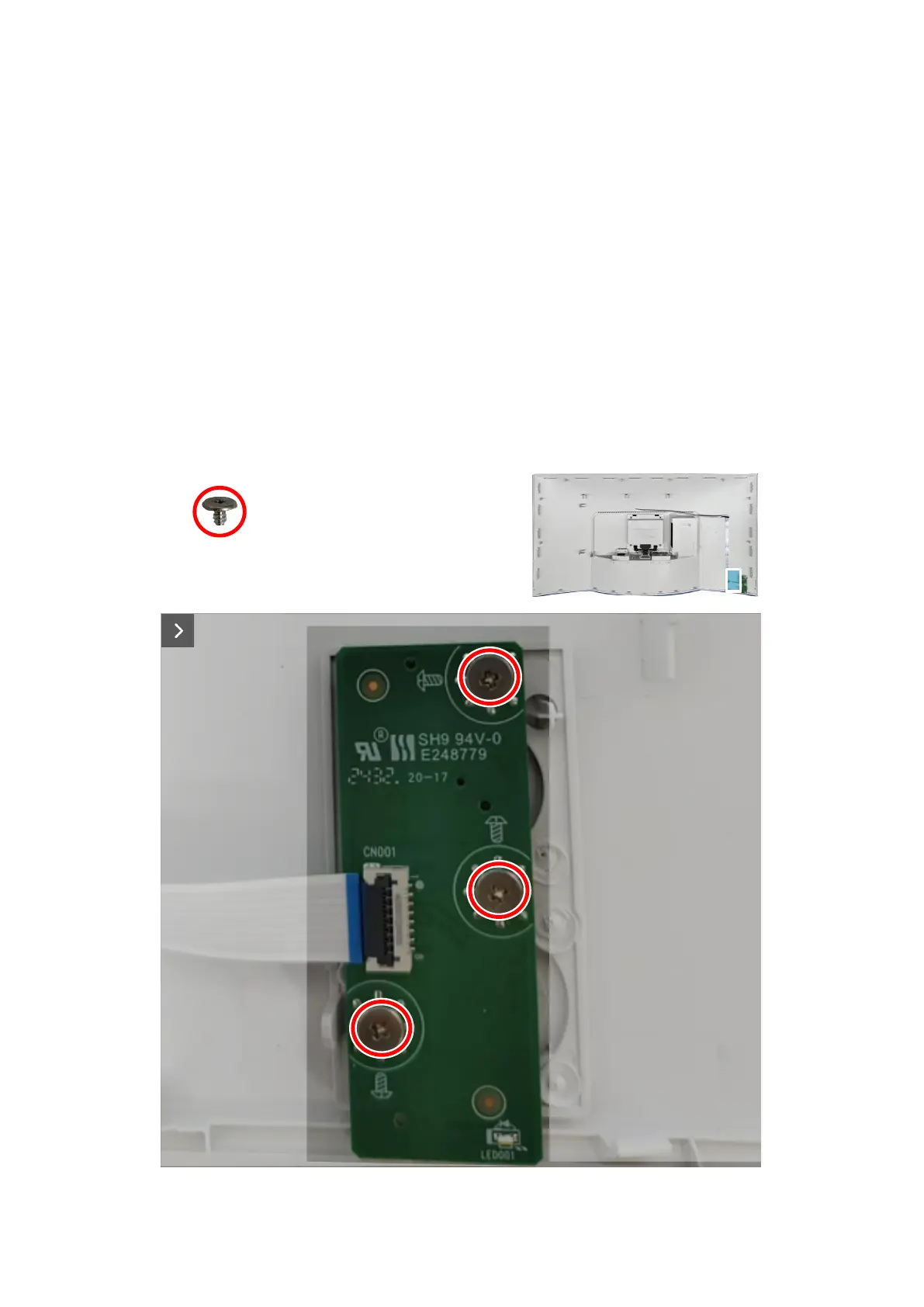

The following image indicates the location of the keypad board and provides a visual representation of the removal procedure.
3x
Q2x2.5
Figure 39. Removing the screws
