23
Disassembly and reassembly
6x
M3x6

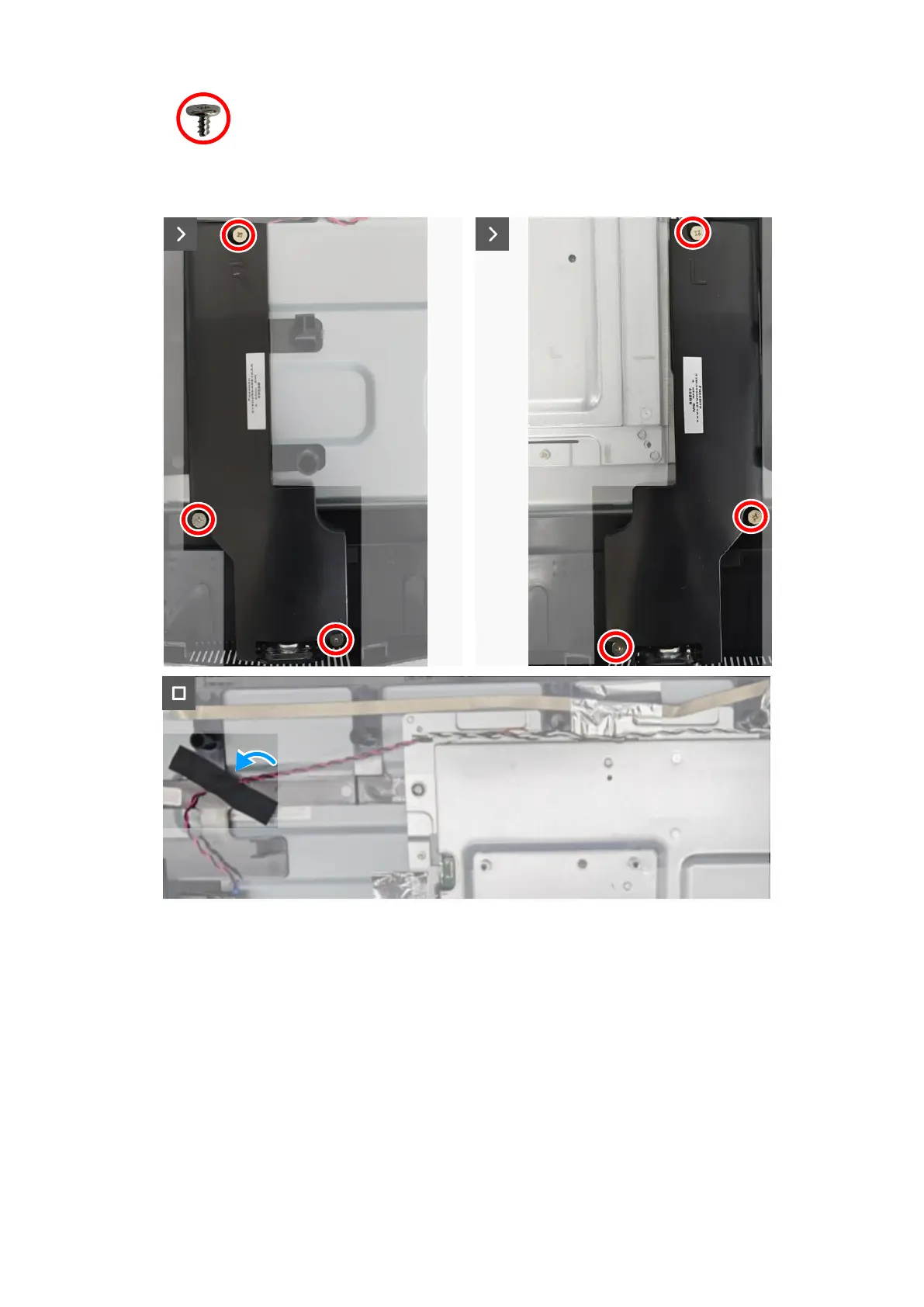

Figure 22. Replacing the screws
Steps
1. Align and place the speakers in the slots on the chassis.
2. Connect the speaker cable to the connector on the system board.
3. Replace the six screws (M3x6) to secure the speakers to the middle frame.
4. Adhere the tape to secure the speaker cable to the display panel.
Next steps
1. Install the back cover.
2. Install the stand.
3. Follow the procedure in After working inside your monitor.
