3-18 Service Manual
Registration (printer)
Print registration makes sure the printing is properly aligned on the page.
The settings available are:
Description Value Direction of change
Top Margin -25 to +25
Each increment causes
approximately 4 pels shift (at
600 dpi).
A positive change moves the image down the
page and increases the top margin. A negative
change moves the image up and decreases the
top margin.
Bottom Margin -20 to +20
Each increment causes
approximately 0.55 mm shift in the
bottom margin.
A positive change compresses the image so it
appears to move down the page, and a negative
change moves the image up.
Left Margin -25 to +25 A positive change moves the image right, and a
negative change moves the image left. No
compression occurs.
Right Margin -10 to +10 A positive change moves the image right, and a
negative change moves the image left.

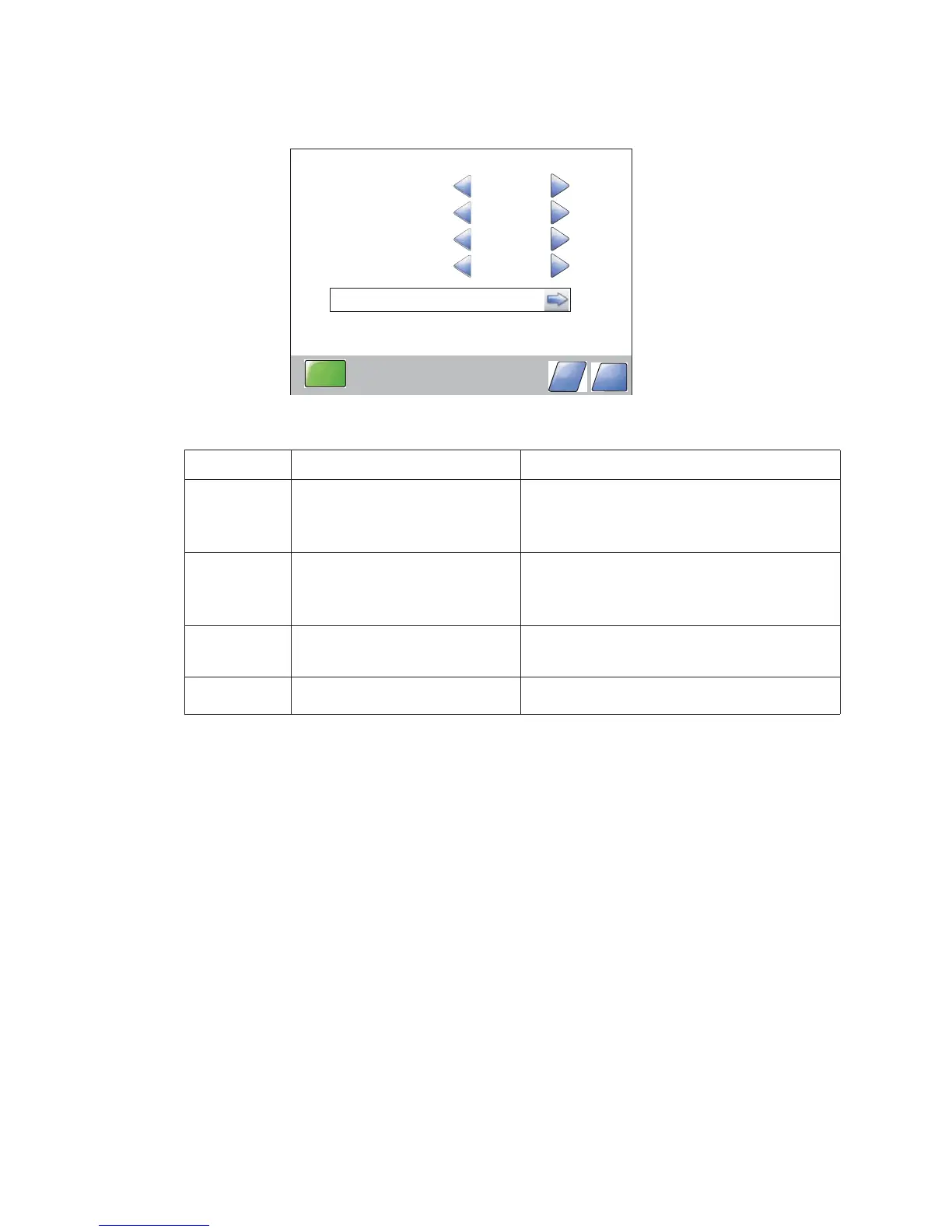

REGISTRATION
Top Margin
Bottom Margin
Left Margin
Right Margin
0
0
0
0
Quick Test
Submit
Back
To Next Page
