Repair information 4-25
Front access door removal
1. Remove the front door access cover. See “Front door access cover removal” on page 4-34.
2. Remove the left side cover. See “Left side cover removal” on page 4-33.
3. Remove the upper front guide assembly. See “Upper front guide assembly removal” on page 4-82,
steps 1-3.
4. Close the front access door.

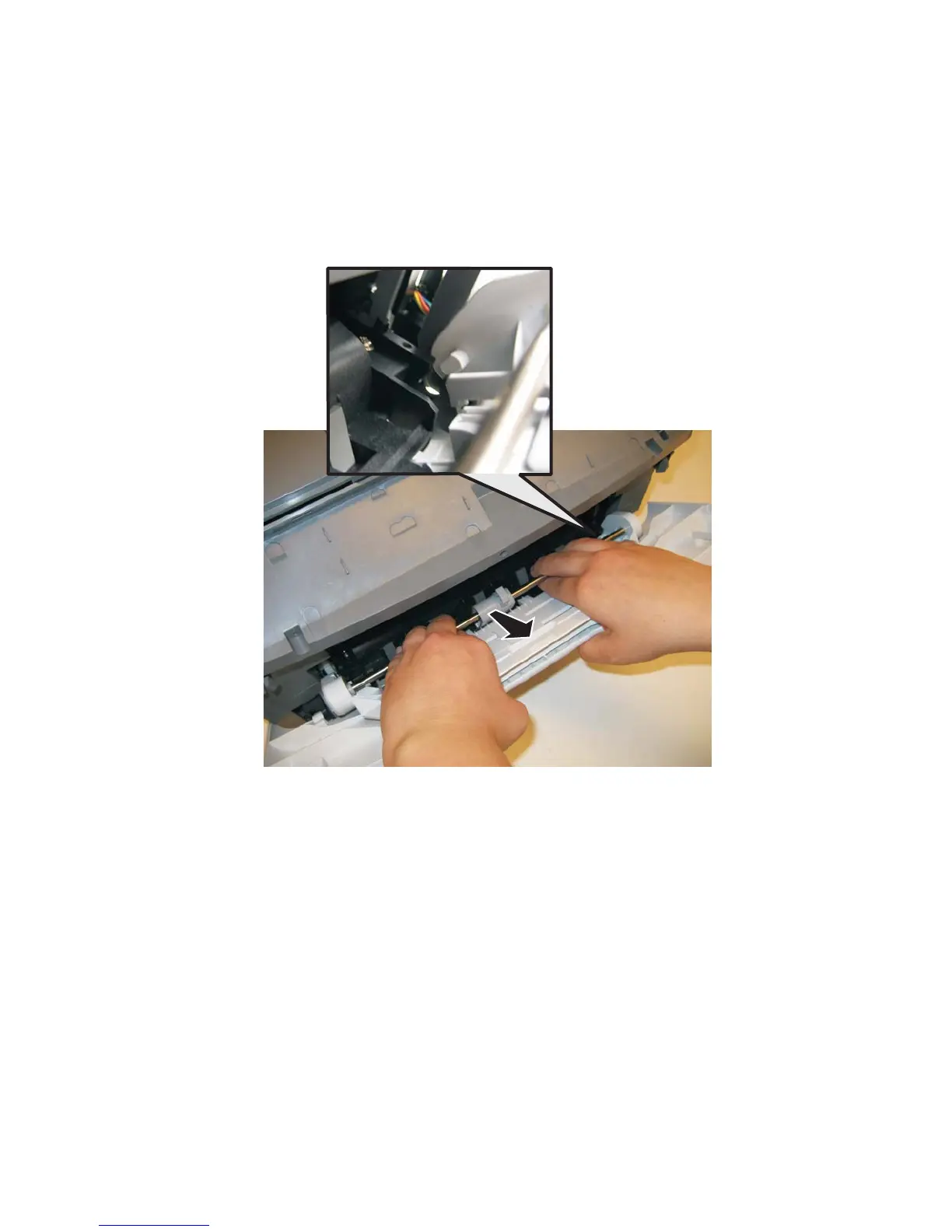

5. While closing the MPF cover, pull up on the MPF by the steel shaft until the MPF lifts from its hinges.
