4-6
Upper and lower card reader cover removal
1. Remove the scanner front cover. See “Scanner front cover removal” on page 3-31.
2. Remove the card reader. See “Card reader removal” on page 4-5.

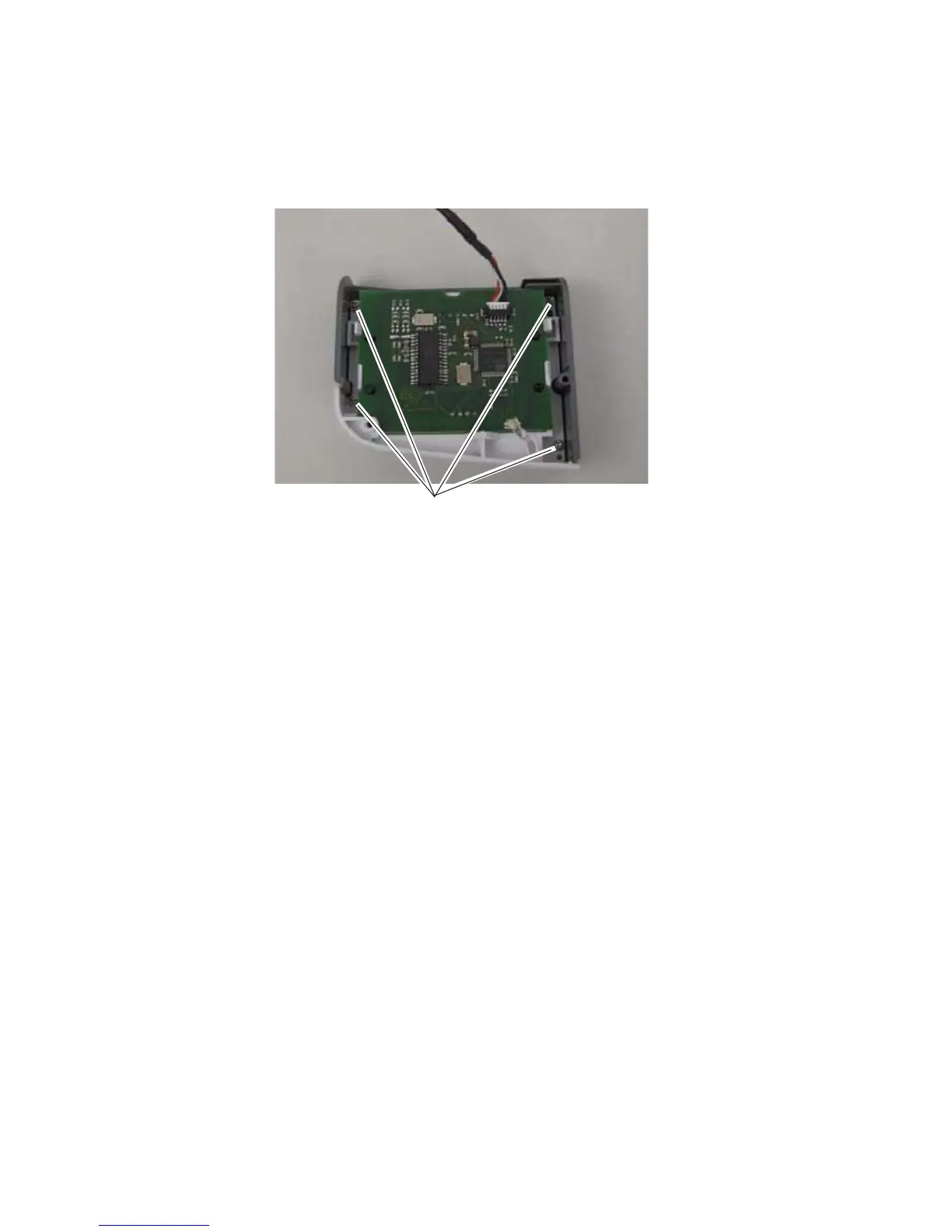

3. Remove the four screws (A) fastening the upper and lower card reader covers.
A
