Dell 3335dn - Left Scanner Cover Removal

4-100
9.
Remove the ADF cable from the MFP.

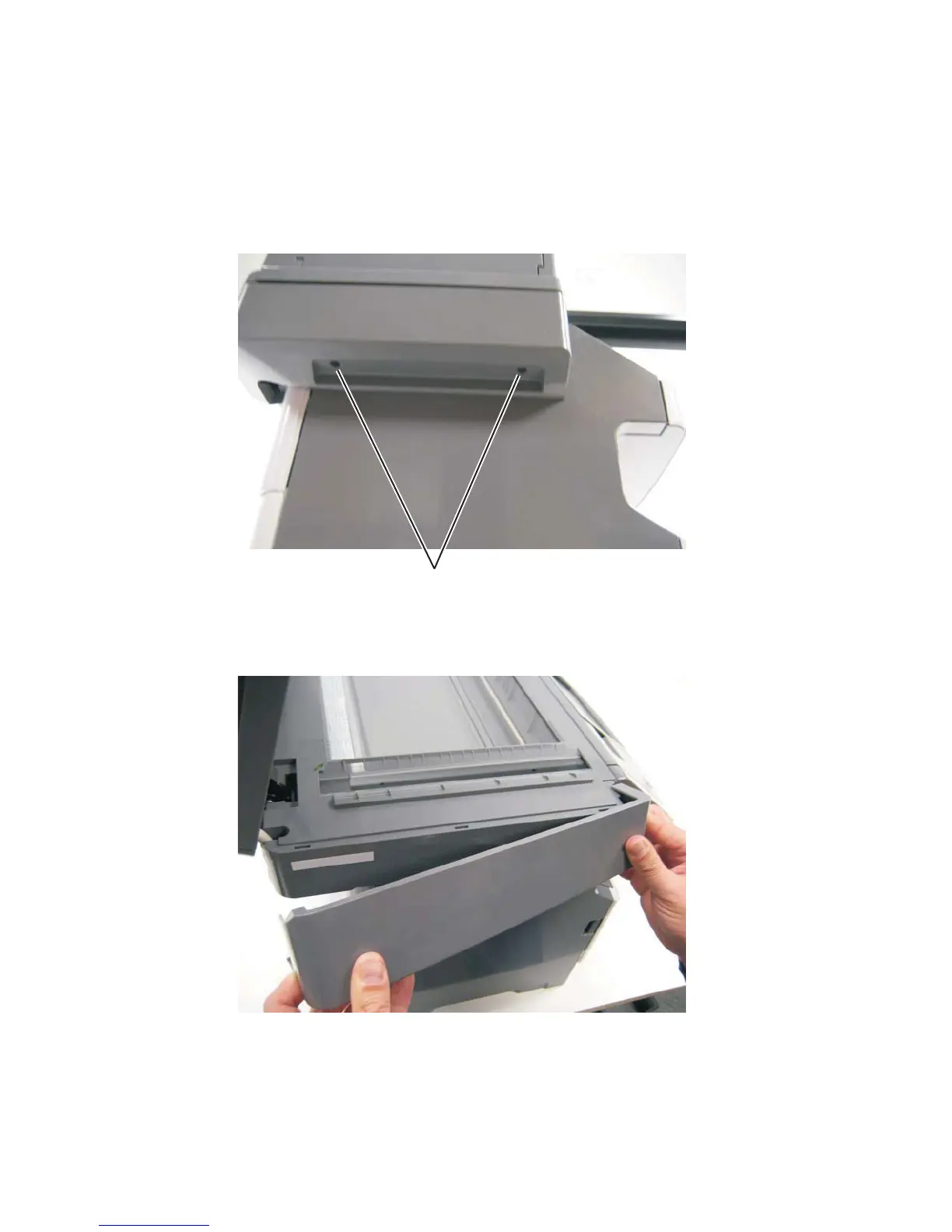

Left scanner cover removal
1. Lift the ADF to the up position.
2. Remove the two screws (A) securing the left scanner cover to the flatbed unit.
3. Lift and carefully pull the left scanner cover up and away from the rear of the flatbed.
A
