Dell 3335dn Service Manual

Locations and connections 5-3

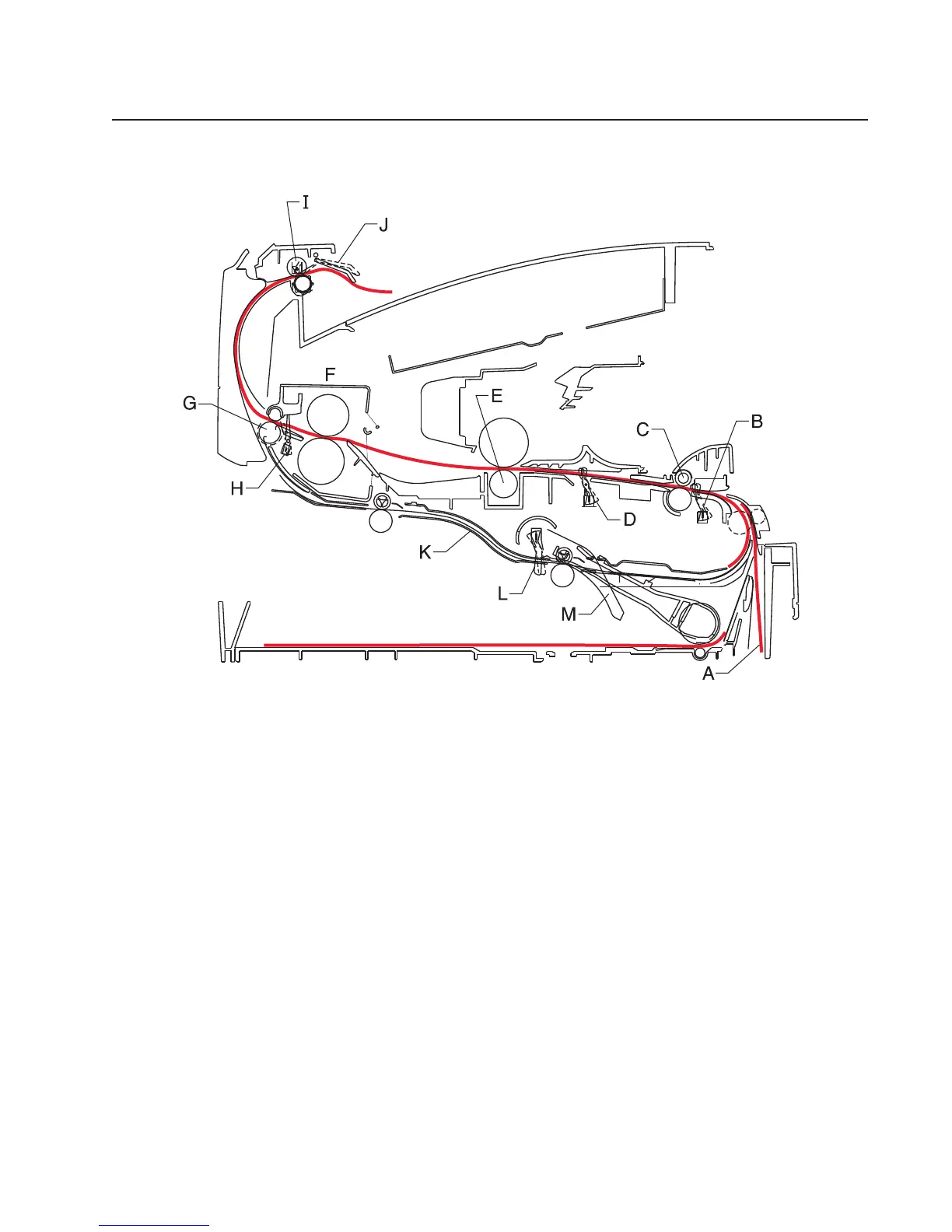

Print engine paperpath
A Paper path A – B 125.3
B Manual feed sensor B – C 9.0
C Upper end feed rolls C – D 59.8
D Input sensor D – E 44.9
E Transfer roll E – F 112.7
F Fuser F – G 21.4
G Fuser exit rolls G – H 114.8
H Fuser exit sensor H – I 7.5
I Exit rolls I – J 17.0
J Exit sensor/narrow media sensor I – K 211.7
K Duplex unit K – L 93.4
L Duplex sensor L – M 8.4
M Auto compensator M – B 177.2
