Repair information 4-35
Lower front cover removal
1. Open the lower front cover.

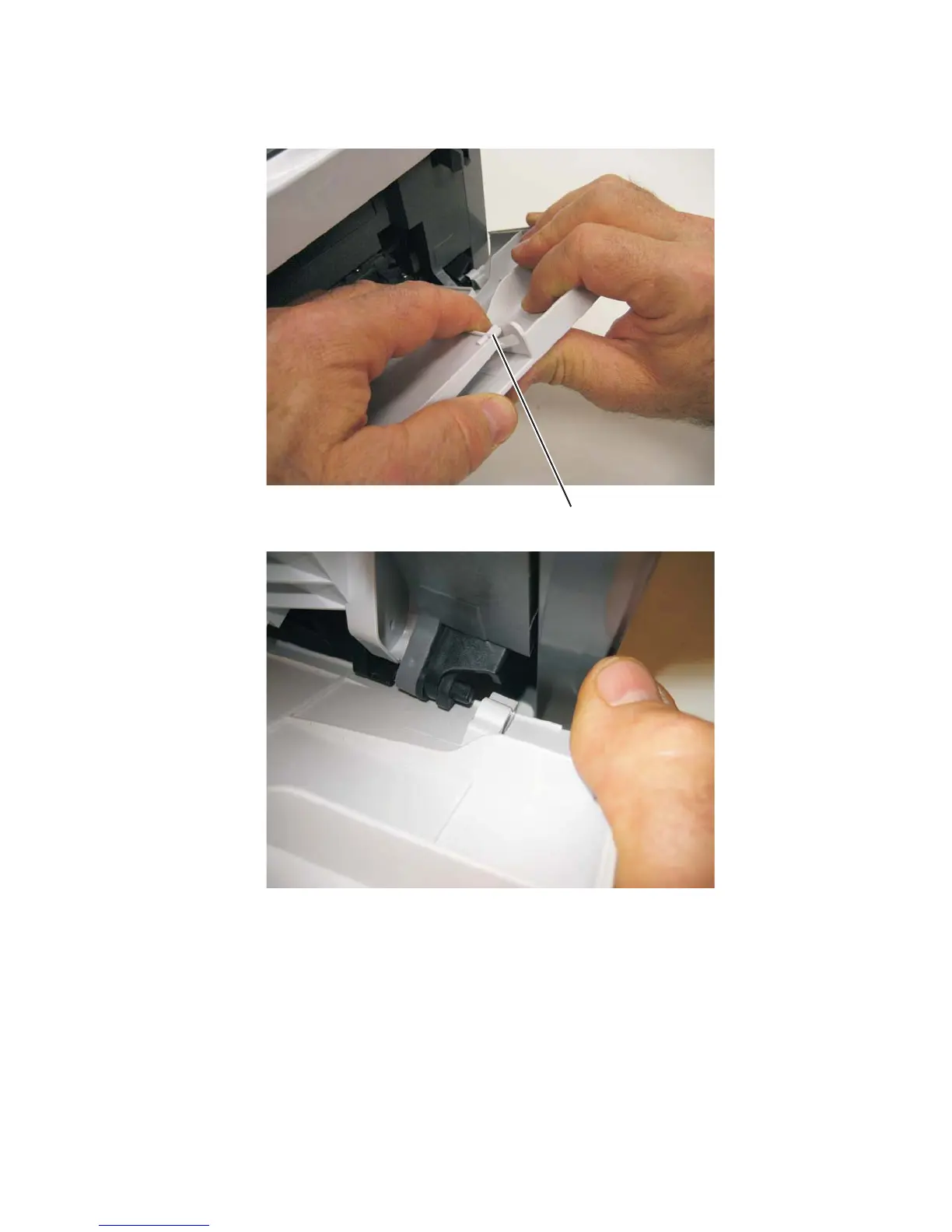

2. Disconnect the MPF pins (A) from the right and left sides of the lower front cover.
3. Flex the lower front cover, and disconnect it first from its right hinge and then from its left hinge.
Note: An alternative to step 3 is to remove the front access door, and remove the three screws from the right
door mount. See “Front access door removal” on page 4-25 and “Door mount removal” on page 4-17.
