Dell 3335dn - ADF Separator Pad

Repair information 4-95

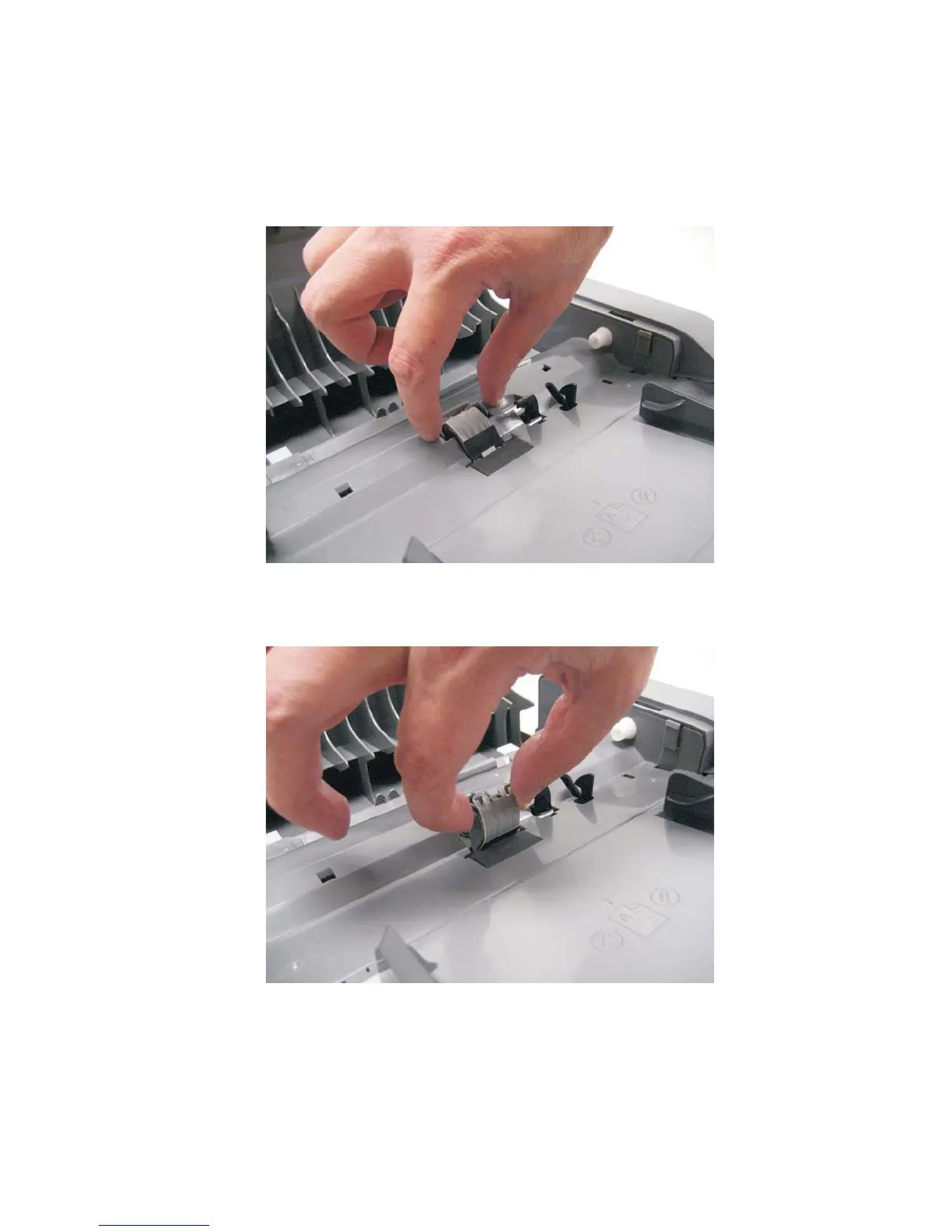

ADF separator pad
1. Remove the ADF separator roll. See “ADF separator roll assembly” on page 4-96.
2. Pinch the two tabs on each side of the pad inward.
3. Tilt the pad up, and lift it out of the ADF assembly.
