Repair information 4-41
5.

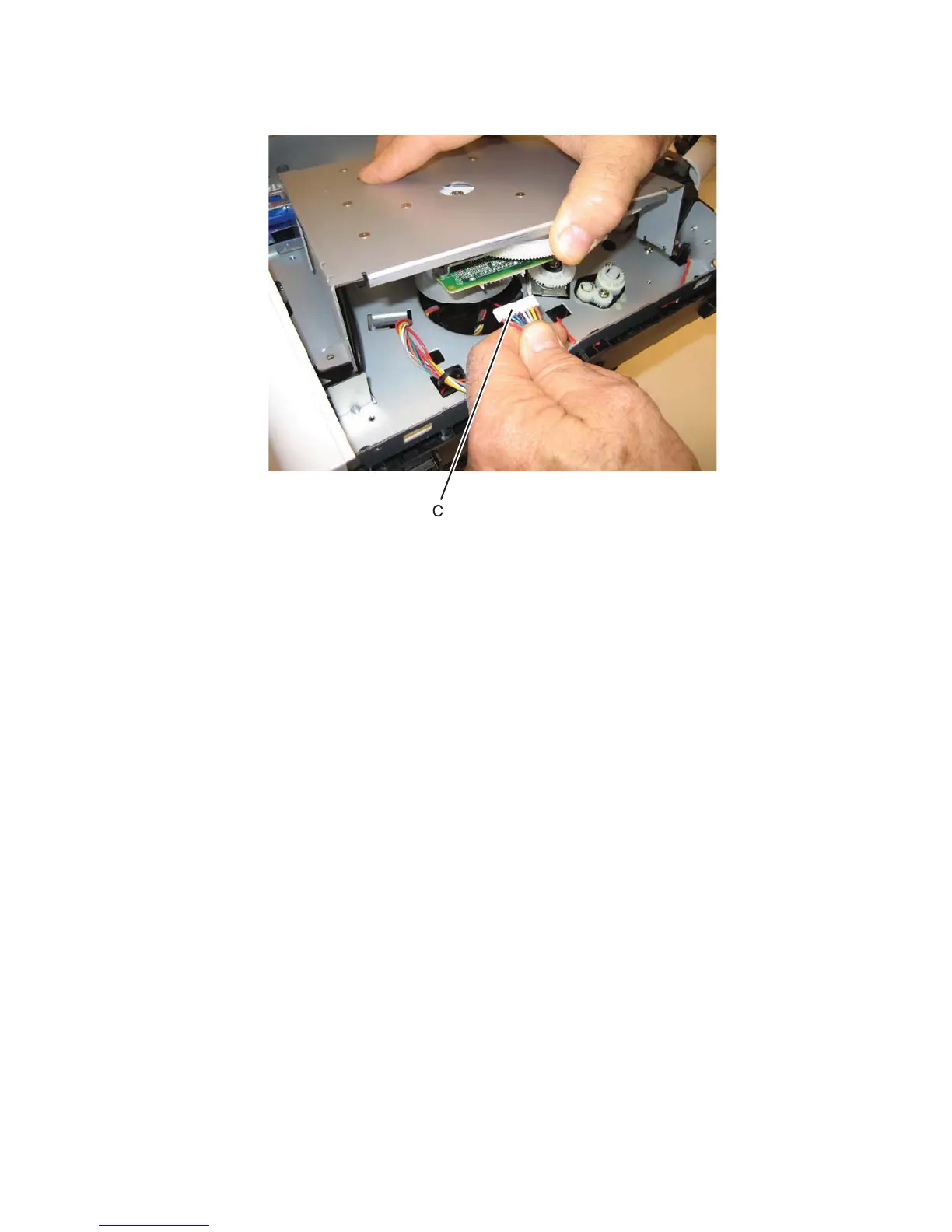

Lift the gear drive, and disconnect the main motor gear drive cable (C).
6. Remove the main motor gear drive.
