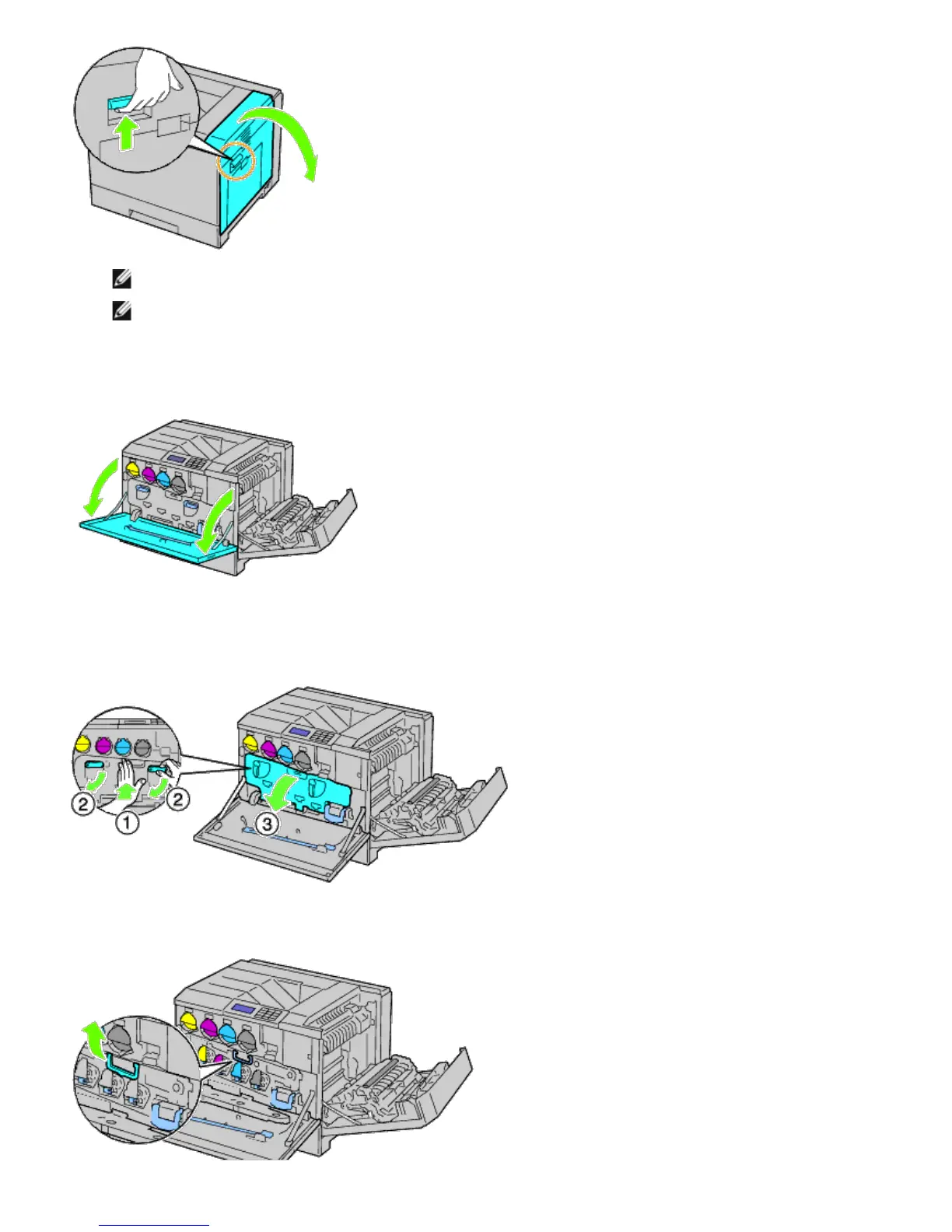

NOTE: Belt unit can be replaced only when the right hand cover is open.
NOTE: Stand straight in front of the right hand cover and not in front of the front cover, whenever you open
the right hand cover.
3. Open the front cover.
4. Rotate the lock levers of the inner cover to open it.
5. Grasp the handle on the front of the belt unit.
