1-2 Dell PowerEdge 6100/200 System Service Manual
•
BIOS in upgradable flash memory attached to the EISA bus
•
Integrated super I/O controller attached to the EISA bus, provides a
bidirectional parallel port, two serial ports, and the diskette drive interface
•
Two integrated Ultra/Wide SCSI controllers
•
Integrated server management circuitry that monitors critical system volt-
ages and temperatures, as well as the operation of the system cooling fans
•
CD-ROM drive standard in an externally accessible drive bay
•
Recessed power and reset buttons to prevent accidental system interruptions
All of these features are briefly described in this chapter. For a complete list of
system features, see “Technical Specifications” found later in this chapter.
For information about installing the PowerEdge 6100 systems in a rack, see the
“Dell PowerEdge 4100 and 6100 Systems Rack Kit Installation Guide”
(P/N 40722).

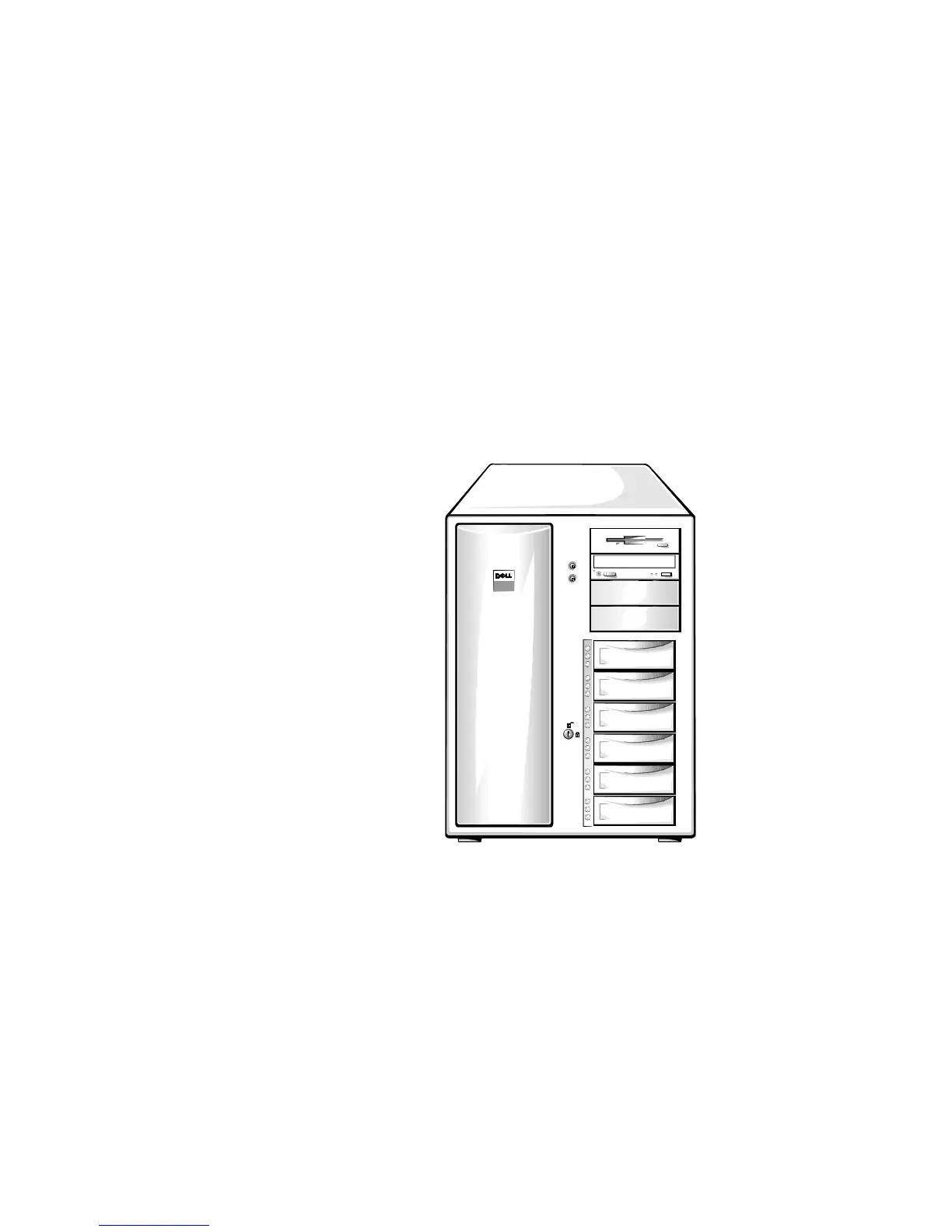

Figure 1-1. Computer Orientation
NOTE: When reading the text in this manual, assume that the location or direc-
tion relative to the system is as shown in Figure 1-1.
back of computer
right side
left side
front of computer
