Dell 6100 - Computer Covers; Figure 4-1. Computer Covers Removal; Figure 4-2. Keylocks on Computers Back Panel

Removing and Replacing Parts 4-3
C
omputer Covers

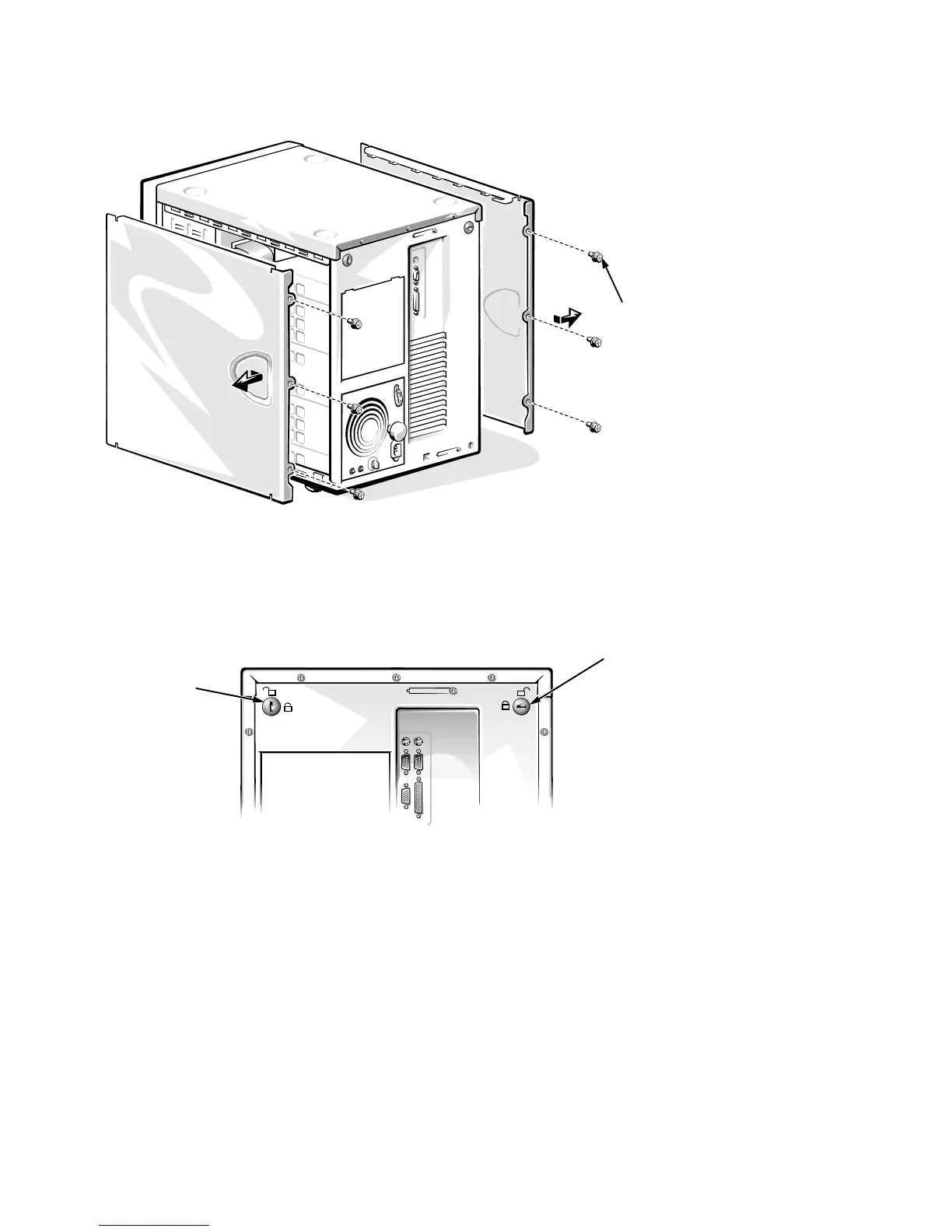

Figure 4-1. Computer Covers Removal
1. Turn the cover’s keylock on the back panel of the computer to the
unlocked position (see Figure 4-2)
.
Figure 4-2. Keylocks on Computer’s Back Panel
2. Loosen the three screws along the back edge of the cover (see
Figure 4-1).
3. Slide the cover toward the back of the computer an inch or so. Then
grasp the top of the cover at both ends, and lift it straight away from the
chassis.
screw (6)
keylock
(locked
position)
keylock
(unlocked
position)
