Removing the Palm Rest | 46
Procedure
1 Lift the connector latch and, using the pull-tab, disconnect the keyboard
daughter-card cable from the system board.

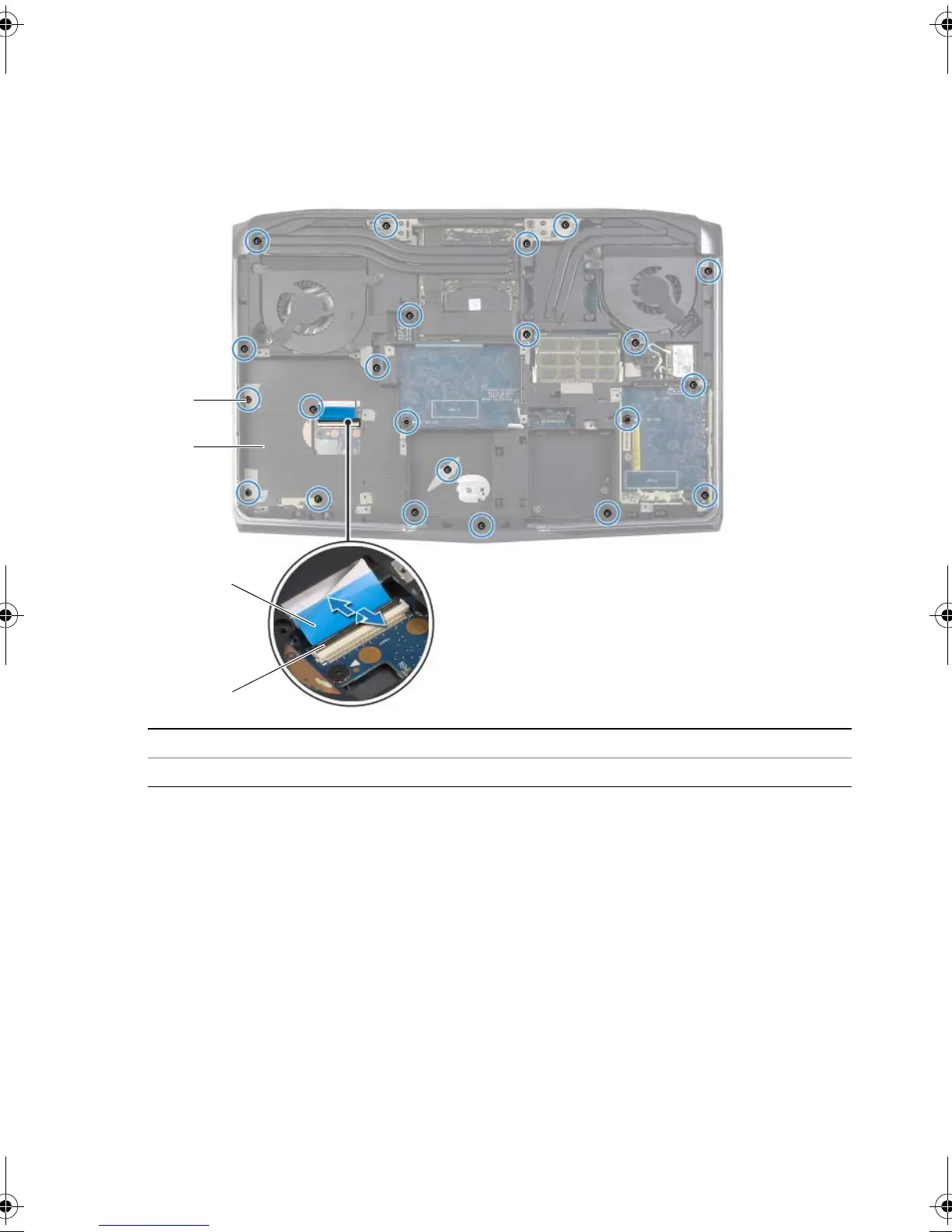

2 Remove the screws that secure the palm-rest assembly to the computer base.
1 screws (22) 2 computer base
3 keyboard daughter-card cable 4 latch
2
1
3
4
