Removing the Speakers | 67
Procedure
1 Disconnect the speaker cable from the system board.
2 Remove the screws that secure the speakers to the computer base.
3 Lift the left speaker, note the speaker-cable routing, and remove the cable from the
routing guides.
4 Lift the speakers, along with the cable, off the computer base.

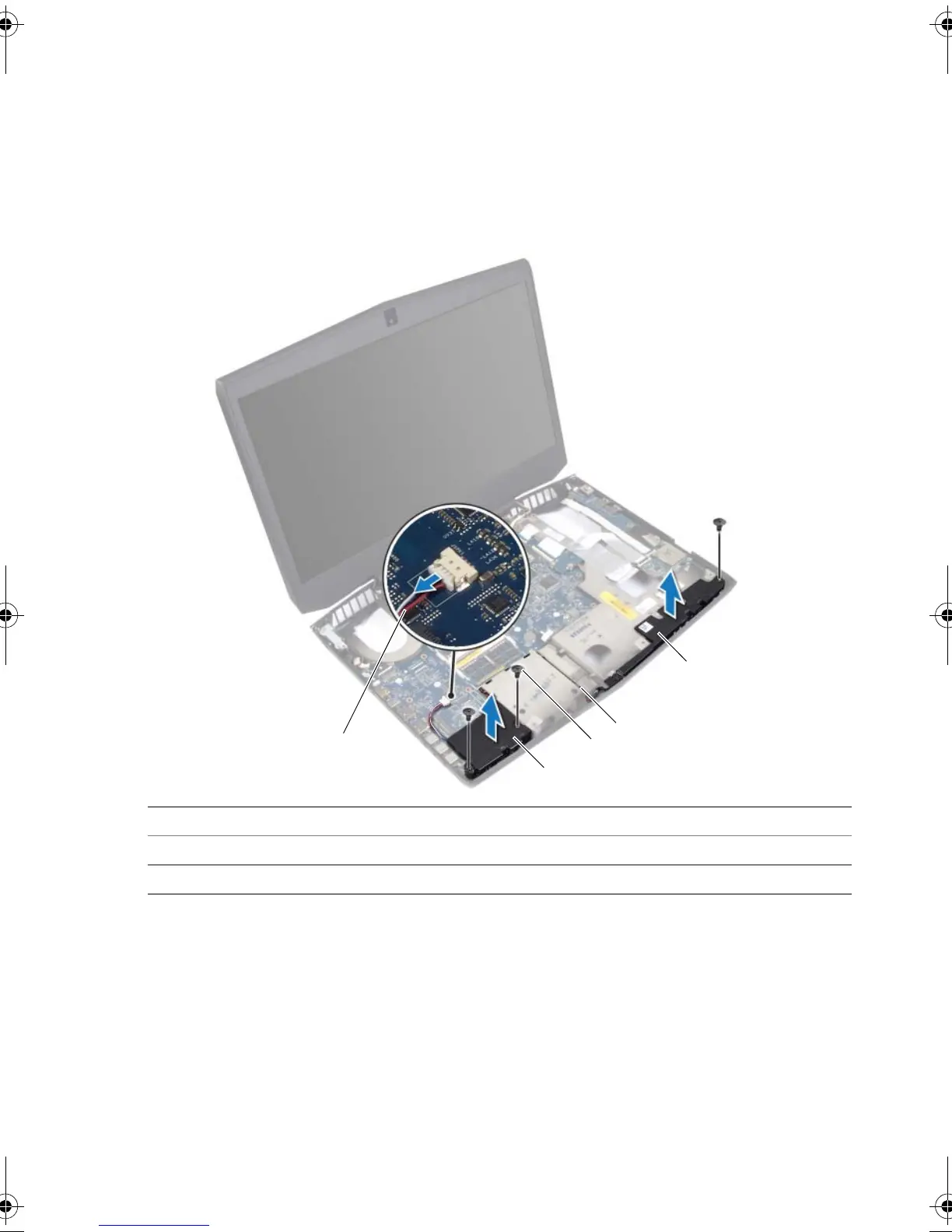

1 speaker cable 2 left-speaker
3 screws (3) 4 speaker-cable routing
5 right speaker
