Removing the Power-Button Board | 58
Procedure
1 Lift the latch and disconnect the power-button cable from the status-light board.
2 Note of power-button cable routing and peel off the power-button cable from the
palm-rest assembly.
3 Remove the screws that secure the power-button board to the palm-rest assembly.
4 Lift the power-button board, along with its cable, off the palm-rest assembly.

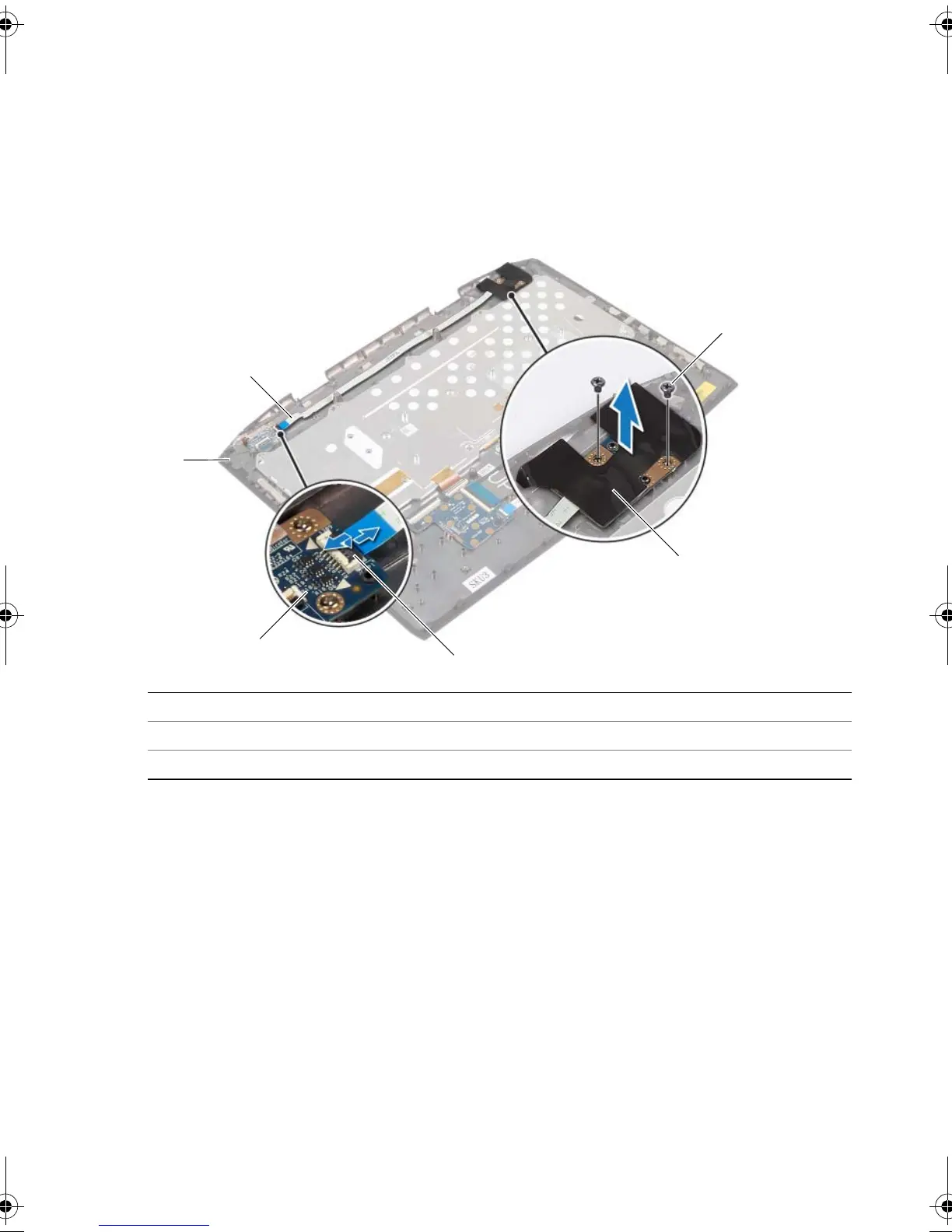

1 power-button cable 2 palm-rest assembly
3 status-light board 4 latch
5 power-button board 6 screws (2)
