Dell Alienware 17 - Procedure

Removing the Status-Light Board | 61
Procedure

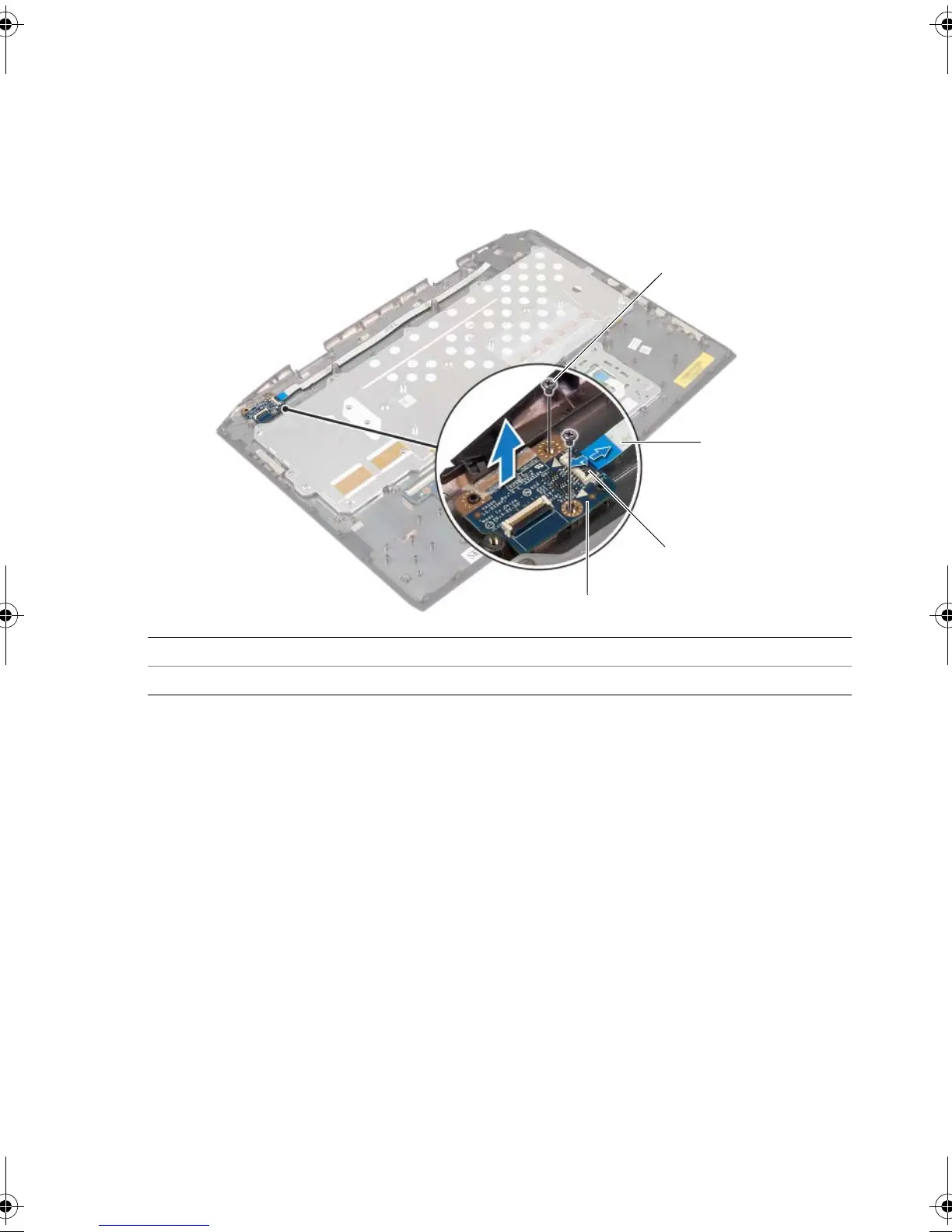

1 Lift the latch and disconnect the power-button board cable from the status-light
board.
2 Remove the screws that secure the status-light board to the palm-rest assembly.
3 Lift the status-light board off the palm-rest assembly.
1 screws (2) 2 power-button board cable
3 latch 4 status-light board
