Removing the I/O Board | 70
Procedure
1 Disconnect the right tron-lights cable from the I/O board.
2 Remove the screws that secure the I/O board to the system board.
3 Ease the ports on the I/O board out of the slots on the computer base and lift the I/O
board off the computer base.

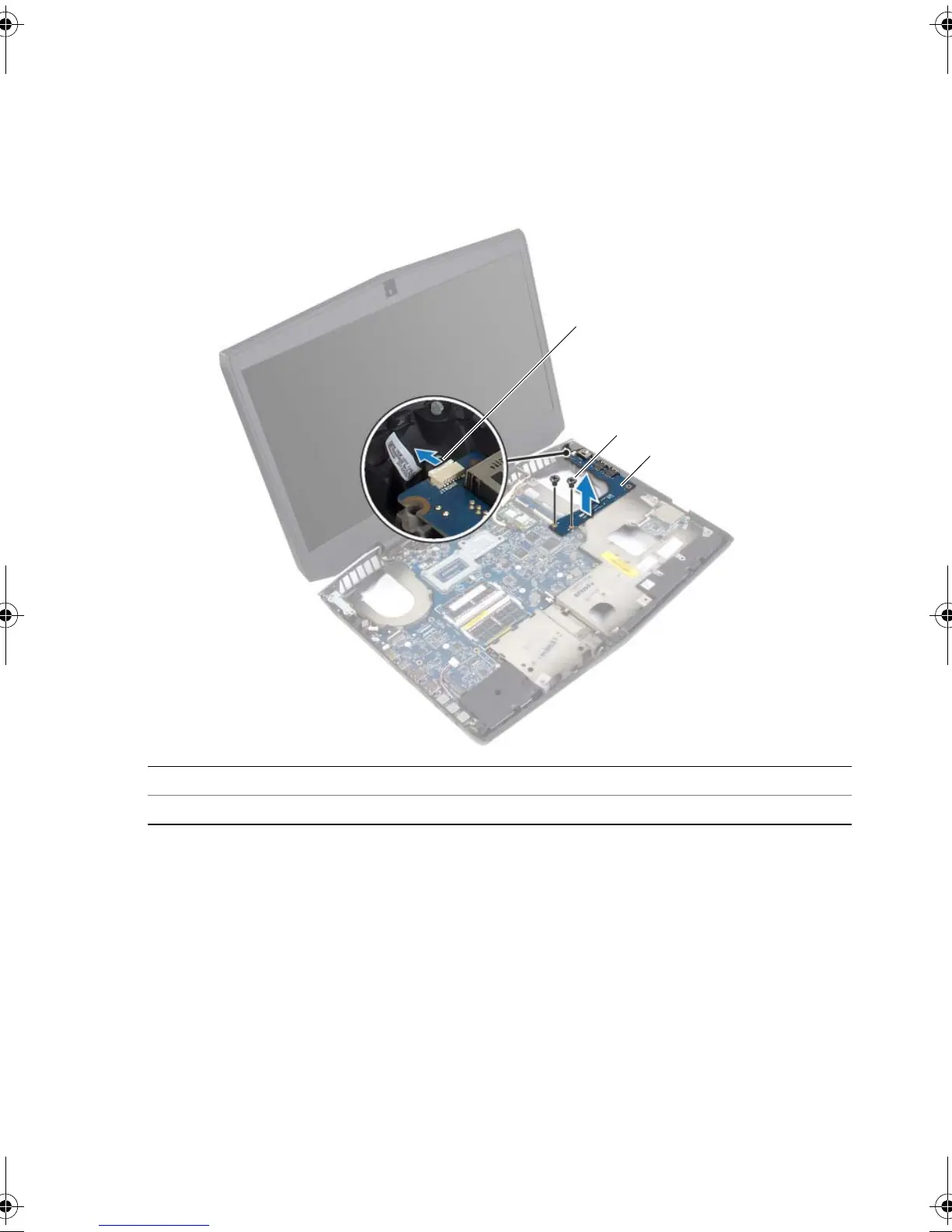

1 tron-lights (right) cable 2 screws (2)
3 I/O board
3
2
1
