Removing the System Board | 82
Procedure
NOTE: Your computer’s Service Tag is located under the system badge. You must
enter the Service Tag in the BIOS after you replace the system board.
NOTE: Before disconnecting the cables from the system board, note the location of
the connectors so that you can reconnect them correctly after you replace the
system board.

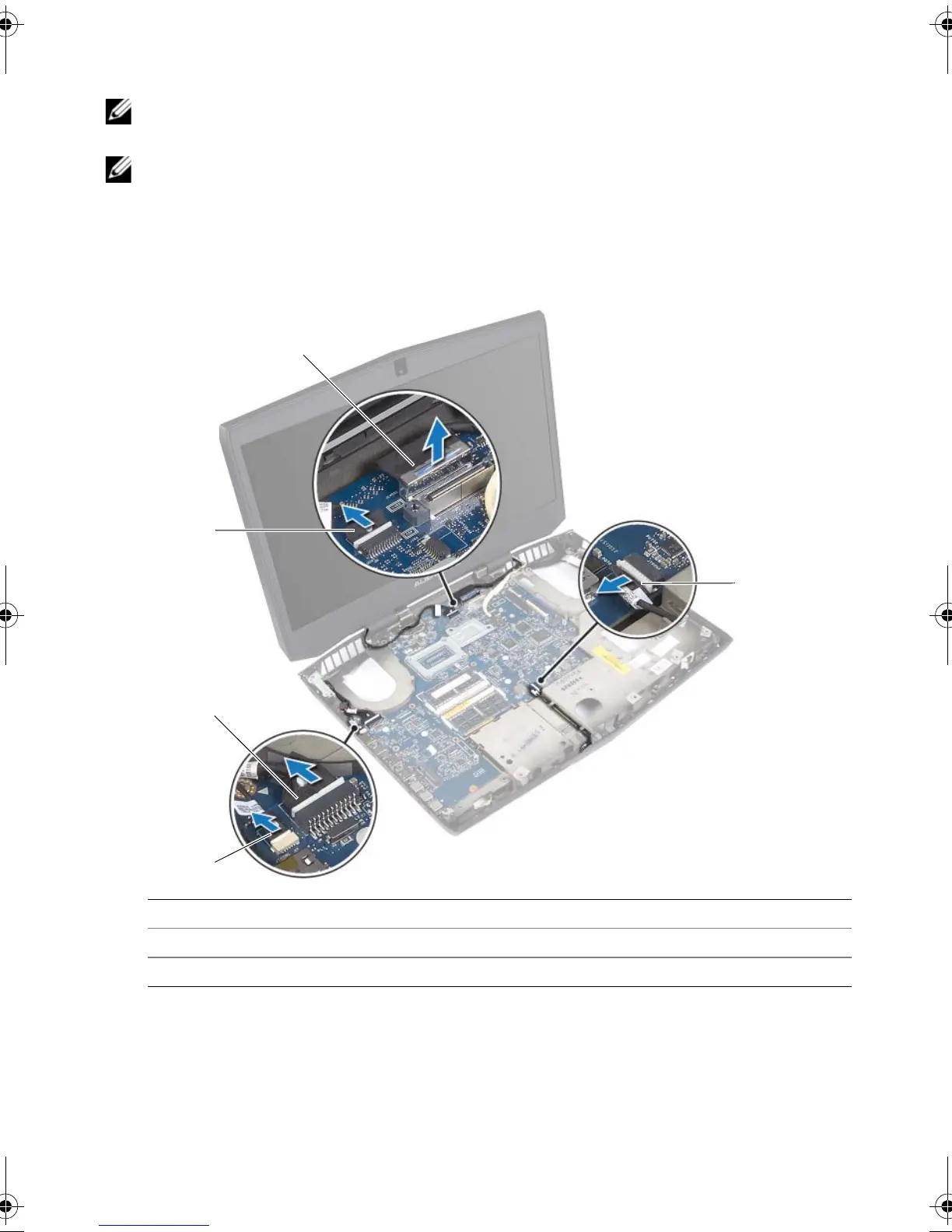

1 Disconnect the display cable, display-light board cable, power-adapter port cable,
left tron-lights cable, and front tron-lights cable from the system board.
1 display cable 2 display-light board cable
3 power-adapter port cable 4 left tron-lights cables
5 front tron-lights cables
