Removing the Keyboard Daughter Board | 64
Procedure
1 Lift the latch and disconnect the keyboard cable, the keyboard-backlight cable,
and the touchpad cable from the keyboard daughter board.
2 Remove the screws that secure the keyboard daughter board to the
palm-rest assembly.
3 Lift the keyboard daughter board, along with its cable, off the palm-rest assembly.

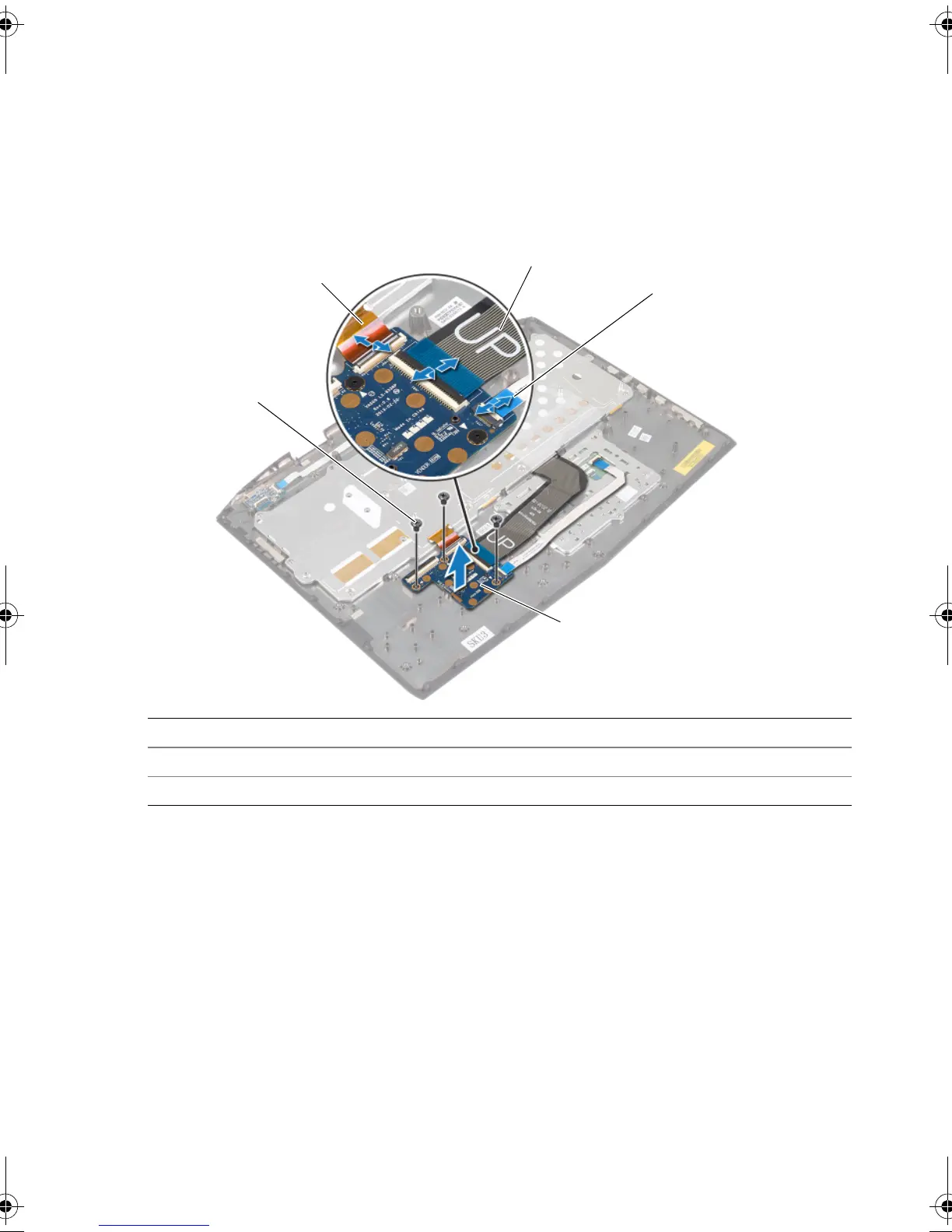

1screws (3) 2keyboard-backlight cable
3 keyboard cable 4 touchpad cable
5 keyboard daughter board
