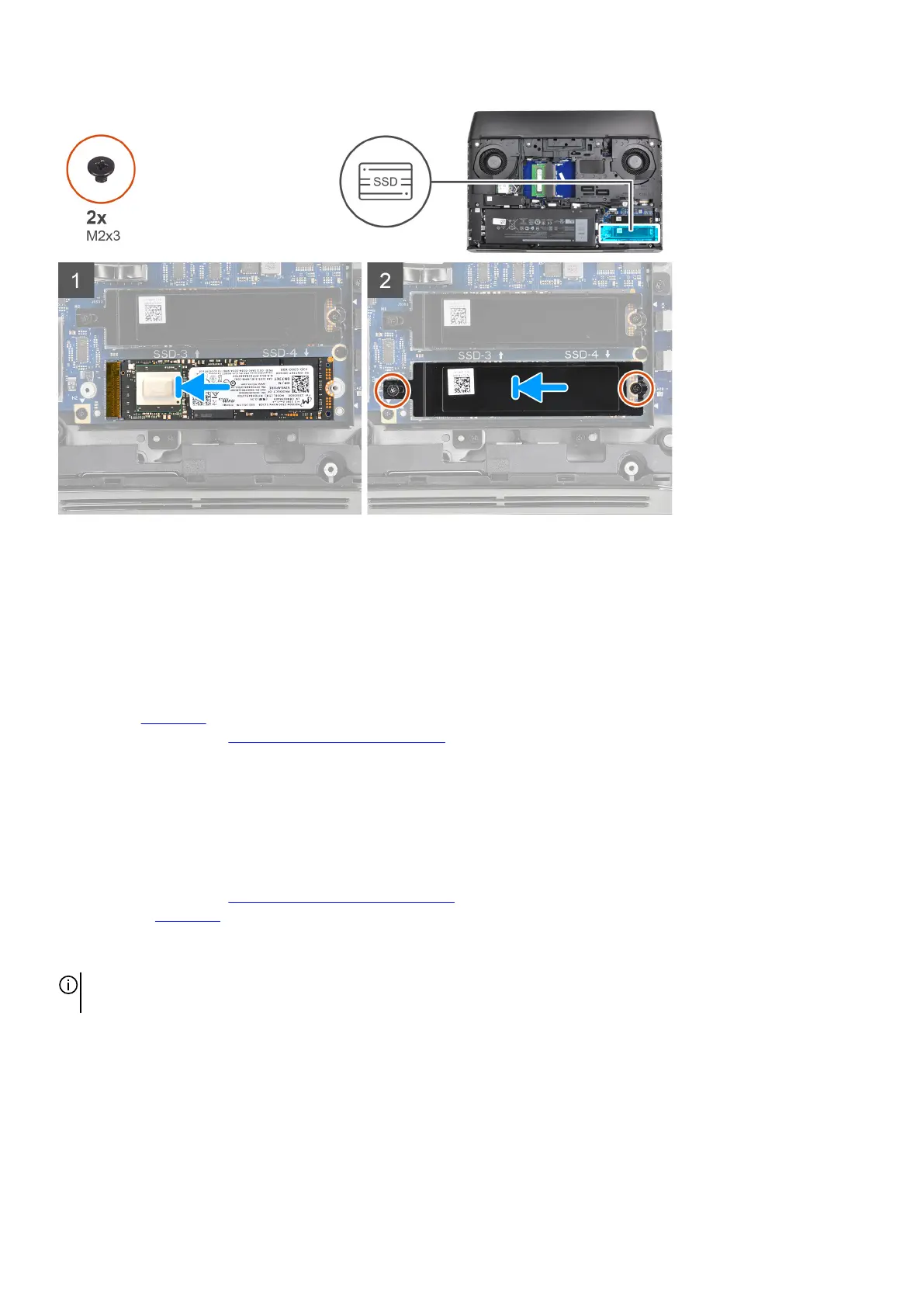

Steps
1. Align the notch on the M.2 2280 solid-state drive with the tab on the M.2 solid-state drive slot on the solid-state drive interposer
board.
2. Slide the M.2 2280 solid-state drive into the M.2 solid-state drive slot on the solid-state drive interposer board.
3. Align the screw holes on the thermal shield with the screw holes on the solid-state drive interposer board.
4. Replace the two screws (M2x3) that secure the solid-state drive and the thermal shield to the solid-state drive interposer board.
Next steps
1. Install the
base cover.
2. Follow the procedure in After working inside your computer.
Solid-state drive interposer board
Removing the solid-state drive interposer board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: Depending on the configuration ordered, the computer may have up to four M.2 solid-state drives installed. This
procedure applies only to computers shipped with more than two solid-state drives.
The following image indicates the location of the solid-state drive interposer board and provides a visual representation of the
removal procedure.
30
