Steps
1. Remove the screw (M2x3) that secures the display-cable bracket to the system board.
2. Lift the display-cable bracket off the system board.
3. Using the pull tab, disconnect the display cable from the system board.
4. Disconnect the camera cable from the system board.
5. Peel off the display cable and the camera cable from the computer base.
6. Disconnect the Tobii cable from the system board.
7. Remove the antenna cables from the routing guides on the computer base.
8. Peel off the Tobii cable from the computer base.
9. Remove the two screws (M2.5x8) that secures the computer base to the display assembly.
10.Turn the computer over.

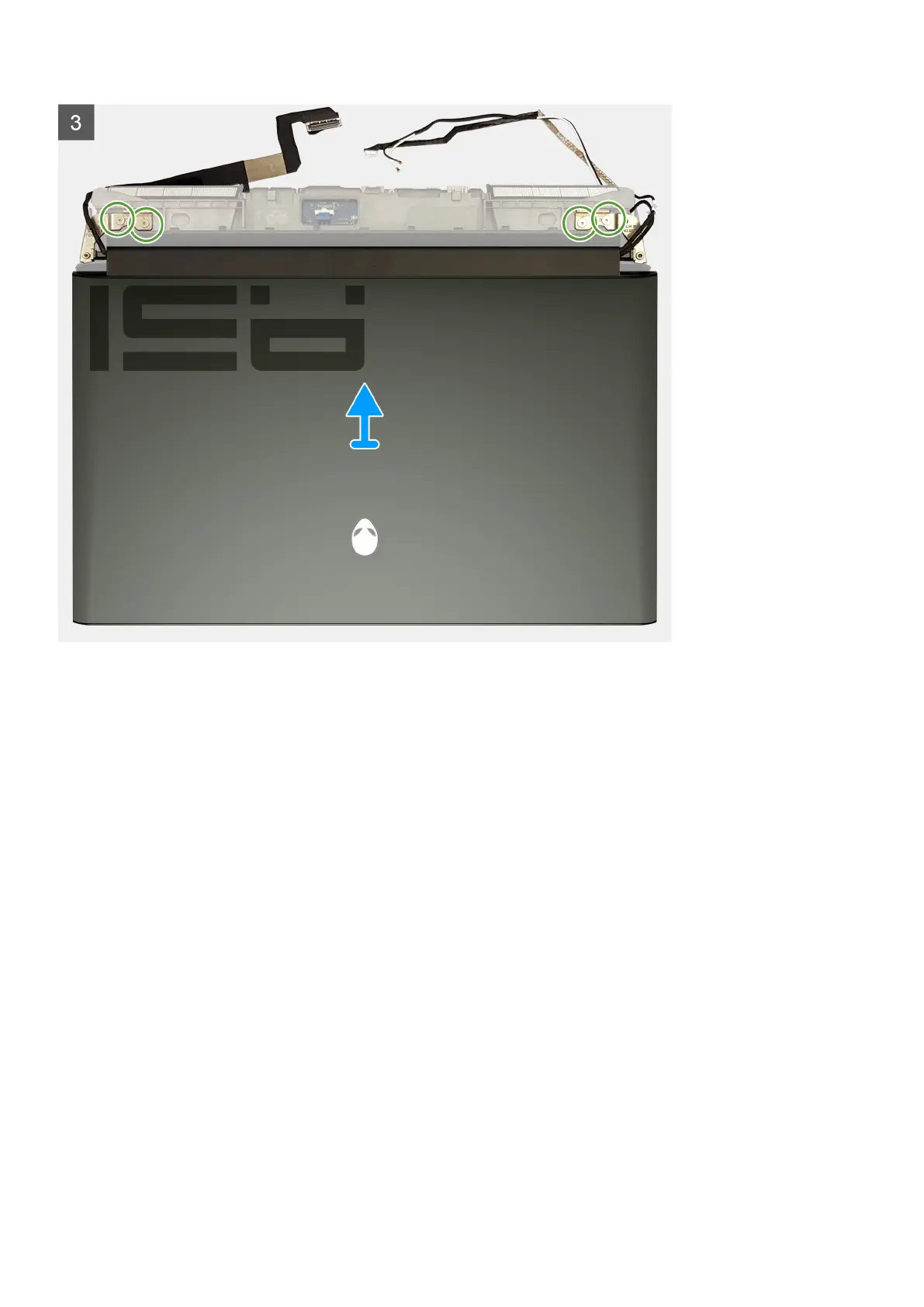

11. Remove the four screws (M2.5x2.5) that secure the display hinges to the palm-rest assembly.
12. Lift the display assembly off the palm-rest assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the display assembly and provides a visual representation of the installation procedure.
55
