Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the
solid-state drive from M.2 slot two.
5. Follow the procedure from step 1 to step 4 in Removing the hard drive, if applicable.
6. Remove the solid-state drive from M.2 slot three, if applicable.
7. Remove the
solid-state drive from M.2 slot four, if applicable.
8. Remove the solid-state drive interposer board, if applicable.
About this task

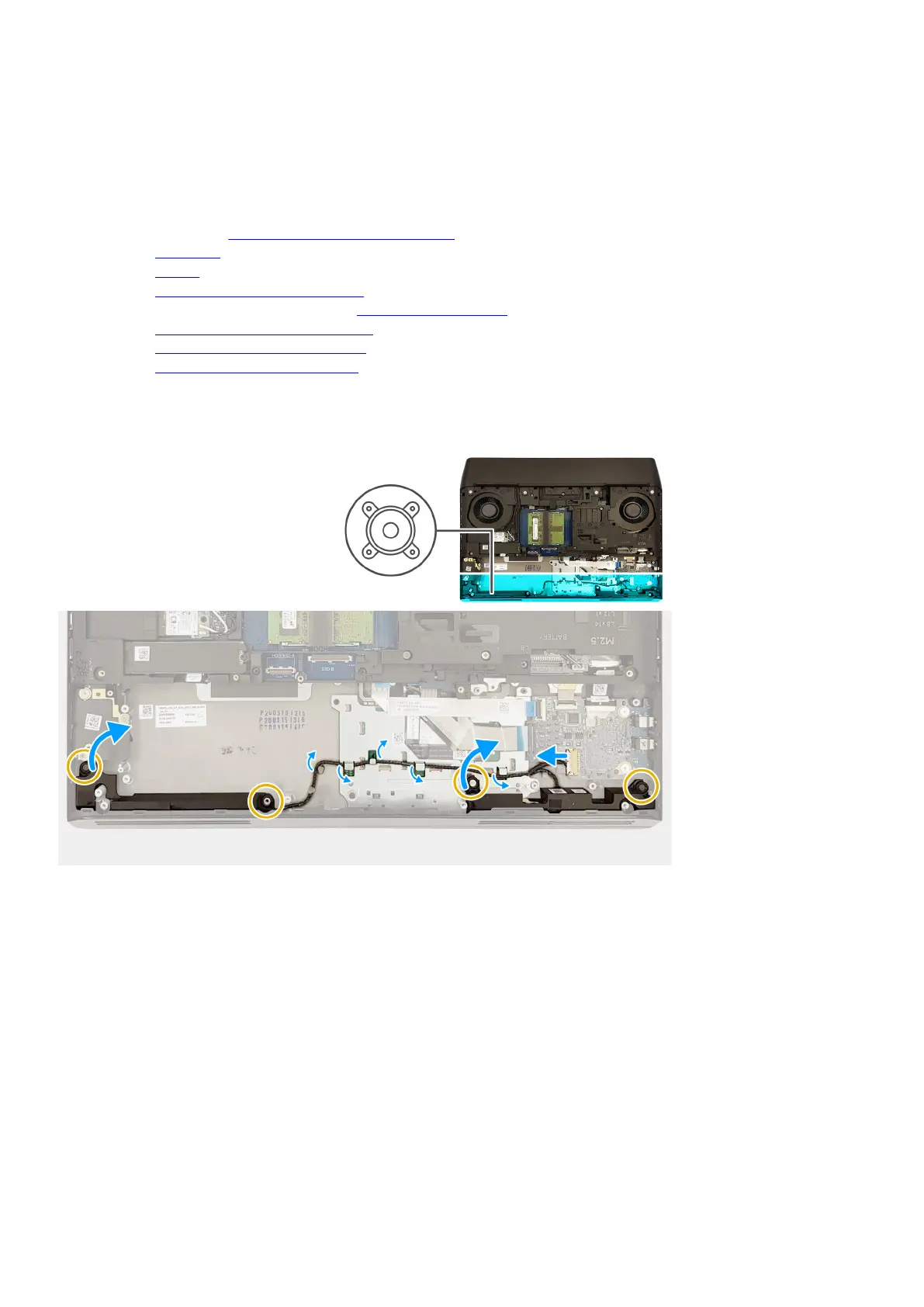

The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
Steps
1. Disconnect the speaker cable from the audio daughter-board.
2. Using the tab on the right speaker, slightly pull the speaker upwards to release the speaker from the palm-rest assembly.
3. Slide the right speaker in a clockwise direction to remove the right speaker from the computer.
4. Note the speaker cable routing and remove the speaker cable from the routing guides on the palm-rest assembly and the
touchpad bracket.
5. Using the tab on the left speaker, slightly pull the speaker upwards to release the speaker from the palm-rest assembly.
6. Slide the left speaker in a clockwise direction to remove the right speaker from the computer.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
41
