Steps
1. Remove the screw (M2x3) that secures the display-cable bracket on the system board.
2. Lift the display-cable bracket off the system board.
3. Using the pull tab, disconnect the hard-drive cable.
4. Remove the hard-drive cable from the routing guides on the computer base.
5. Disconnect the Tobii cable from the system board.
6. Peel off the Tobii cable from the computer base.
7. Remove the antenna cables from the routing guides on the computer base.
8. Using the pull tab, disconnect the display cable from the system board.
9. Disconnect the camera cable from the system board.
10.Peel off the display cable and the camera cable from the computer base.

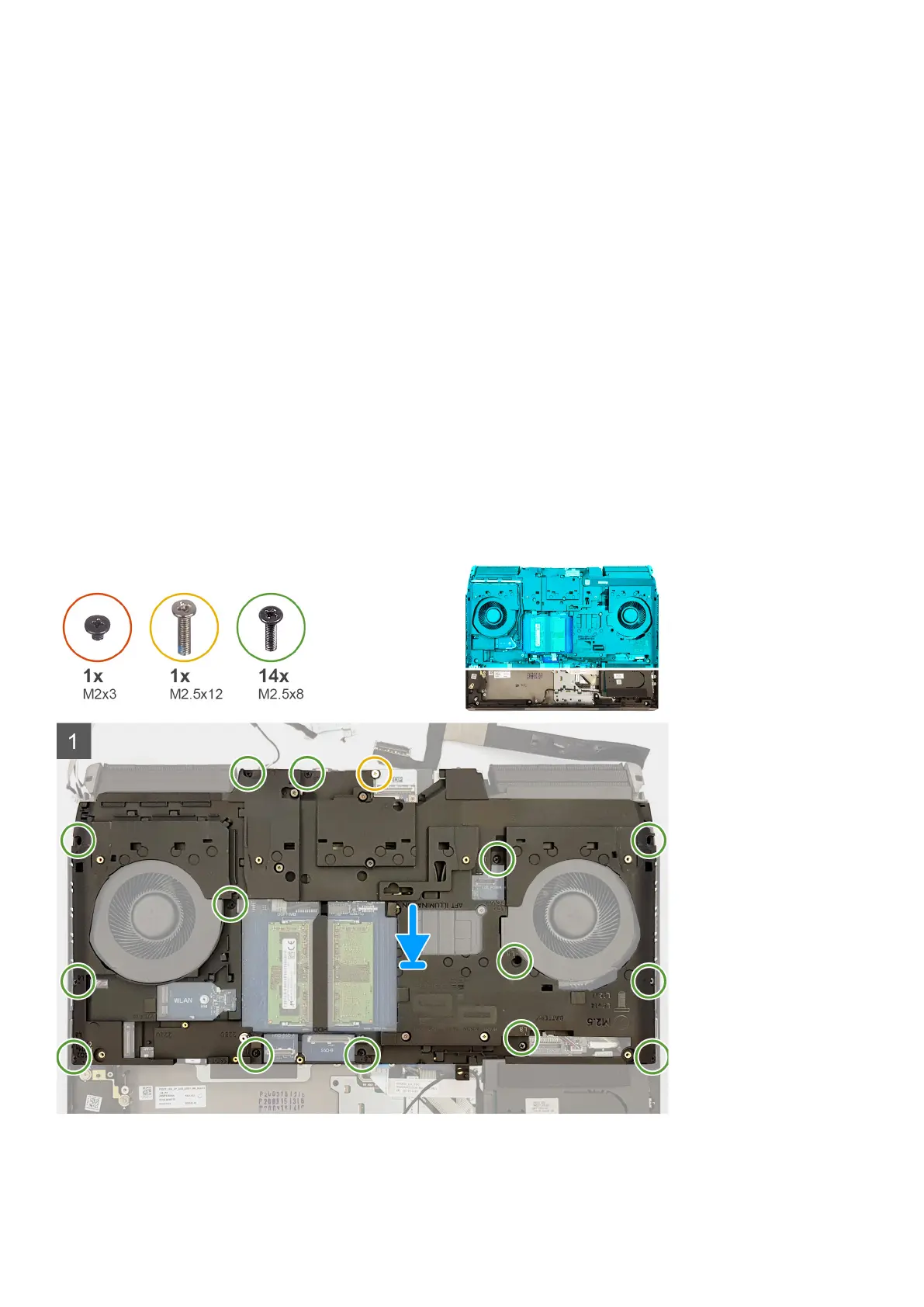

11. Remove the screw (M2.5x12) that secures the computer base to the palm-rest assembly.
12. Remove the 14 screws (M2.5x8) that secure the computer base to the palm-rest assembly.
13. Lift the computer base off the palm-rest assembly.
Installing the computer base
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the computer base and provides a visual representation of the installation procedure.
48
