13. Remove the computer base.
14. Remove the heat-sink assembly.
15.Remove the left power-adapter port.
16.Remove the system board.
About this task

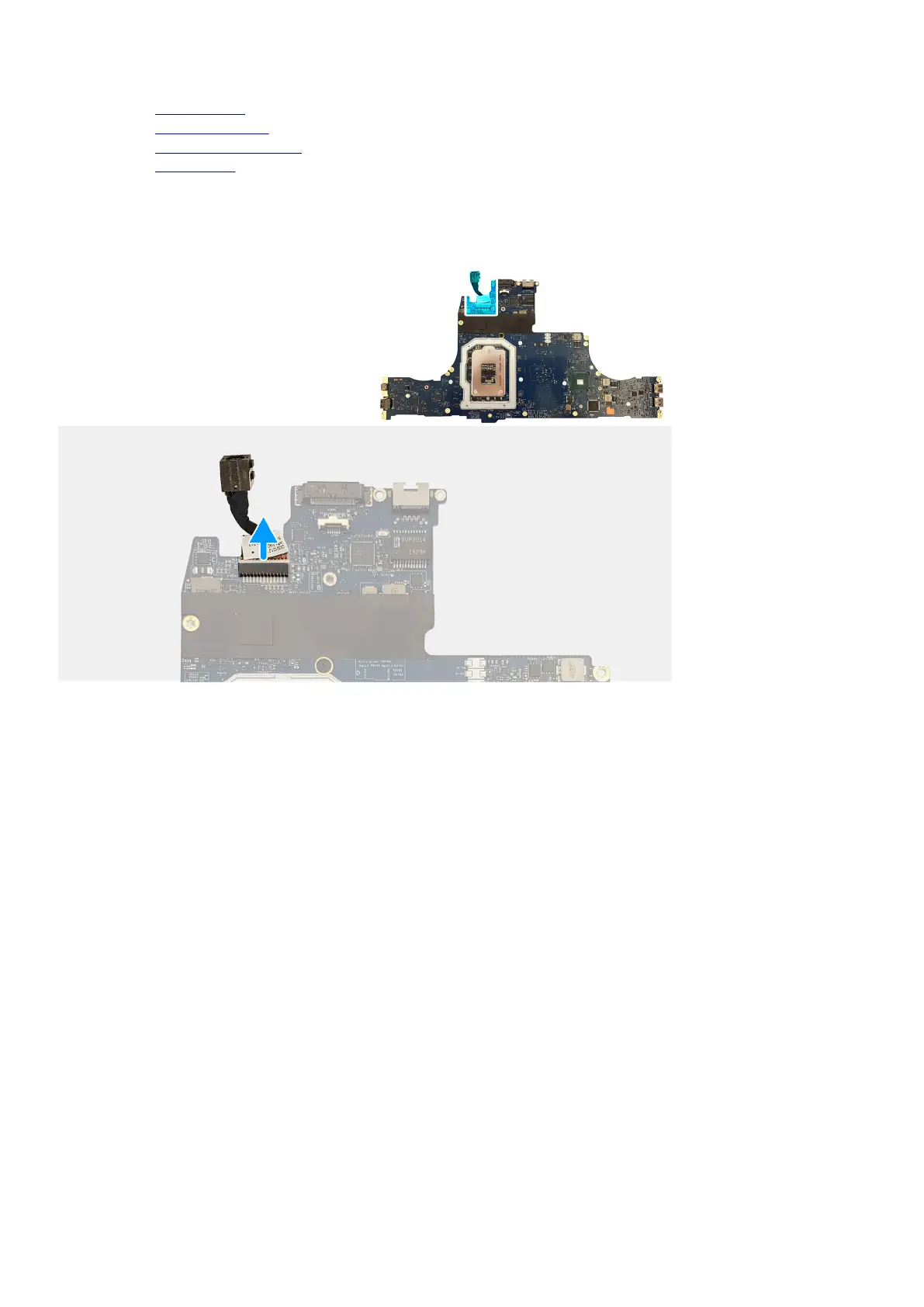

The following image indicates the location of the right power-adapter port and provides a visual representation of the removal
procedure.
Disconnect the right power-adapter port cable from the connector on bottom side of the system board.
Installing the right power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the right power-adapter port and provides a visual representation of the installation
procedure.
72
