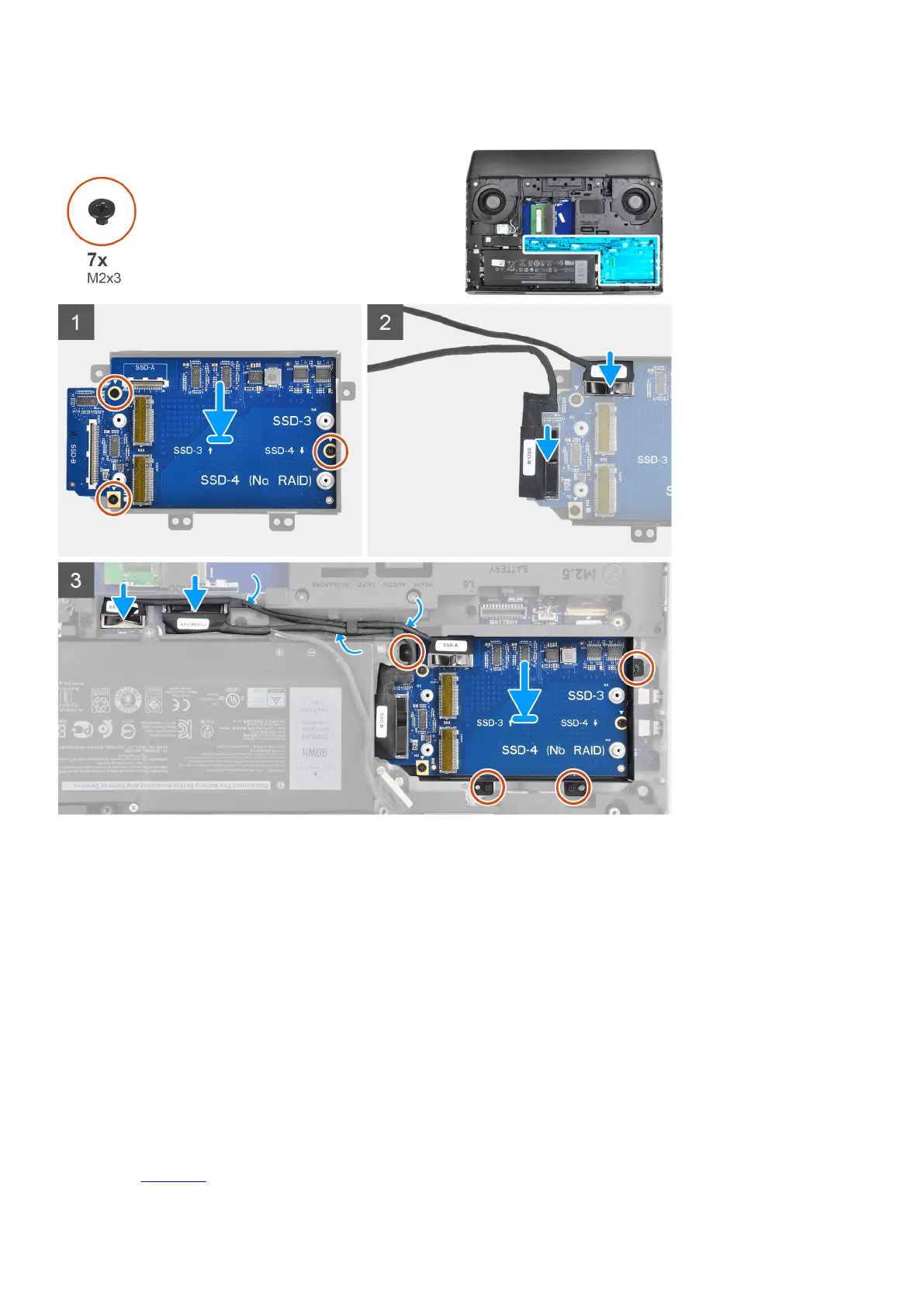

The following image indicates the location of the solid-state drive interposer board and provides a visual representation of the
installation procedure.
Steps
1. Place the solid-state drive interposer board on the solid-state drive interposer board bracket.
2. Align the screw holes on the solid-state drive interposer board with the screw holes on the solid-state drive interposer board
bracket.
3. Replace the three screws (M2x3) that secure the solid-state drive interposer board to the solid-state drive interposer board
bracket.
4. Connect the solid-state drive interposer board cable which is marked as SSD-A to the SSD-A connector on the solid-state drive
interposer board.
5. Connect the solid-state drive interposer board cable which is marked as SSD-B to the SSD-B connector on the solid-state drive
interposer board.
6. Connect the solid-state drive interposer board cable which is marked as SSD-A (MB) to the SSD-A connector on the system
board.
7. Connect the solid-state drive interposer board cable which is marked as SSD-A (MB) to the SSD-B connector on the system
board.
8. Replace the four screws (M2x3) that secure the solid-state drive interposer board to the palm-rest assembly.
Next steps
1. Install the
base cover.
32
