Steps

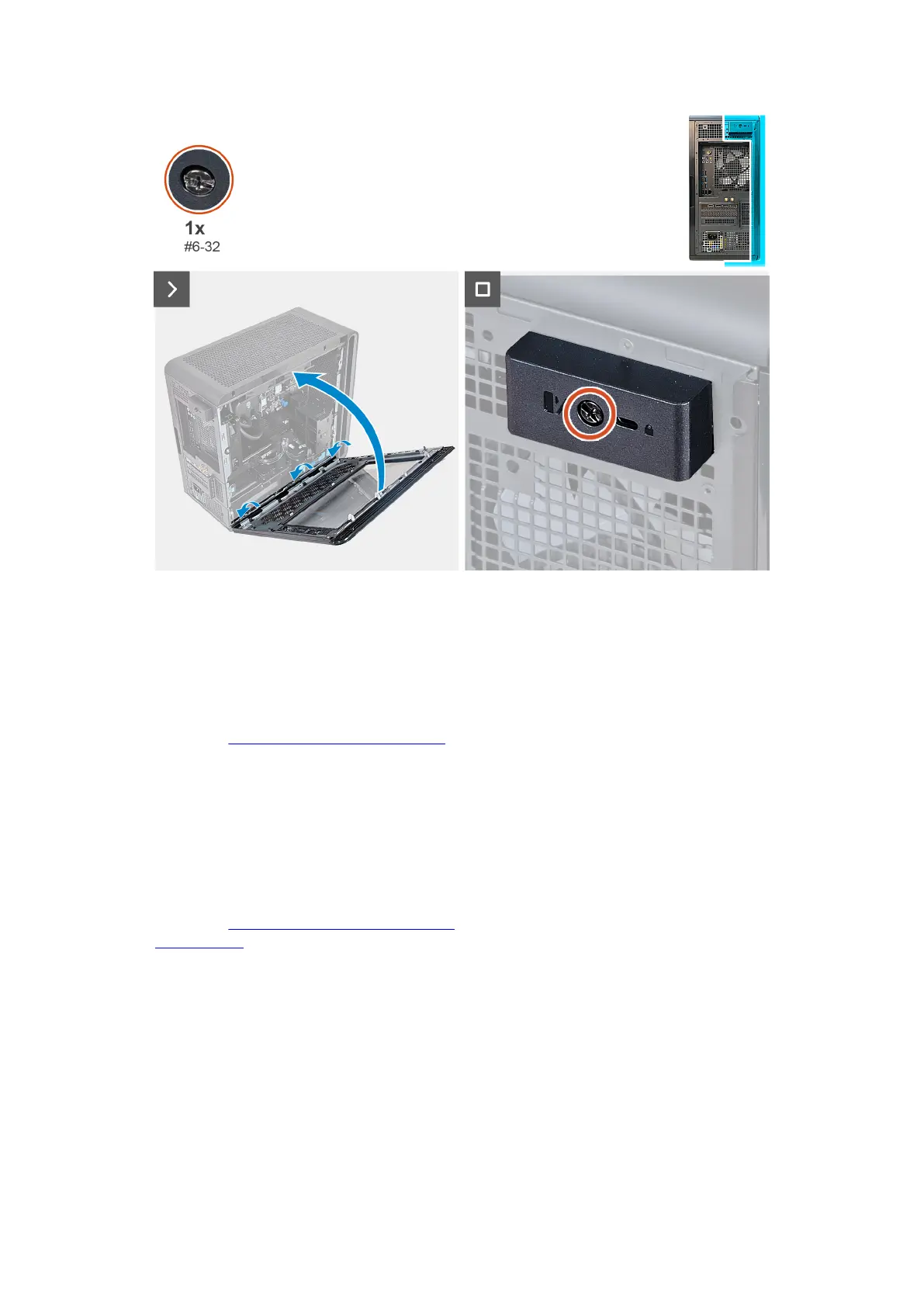

1. Locate the tabs on the left-side cover and slots on the chassis.
2. Rotate the left-side cover towards the chassis until it snaps into place.
3. Tighten the captive screw (#6-32) that secures the side-cover release latch to the chassis.
Next steps
1. Follow the procedure in After working inside your computer.
Right-side cover
Removing the right-side cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the right-side cover and provide a visual representation of the removal procedure.
38
