Steps
1. Remove the four screws (#6-32x1/4") that secures the left liquid-cooling assembly fan to the liquid-cooling assembly.
2. Lift the left liquid-cooling assembly fan off the liquid-cooling assembly.
3. Remove the four screws (#6-32x1/4") that secures the right liquid-cooling assembly fan to the liquid-cooling assembly.
4. Lift the right liquid-cooling assembly fan off the liquid-cooling assembly.
Installing the liquid-cooling assembly fan
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

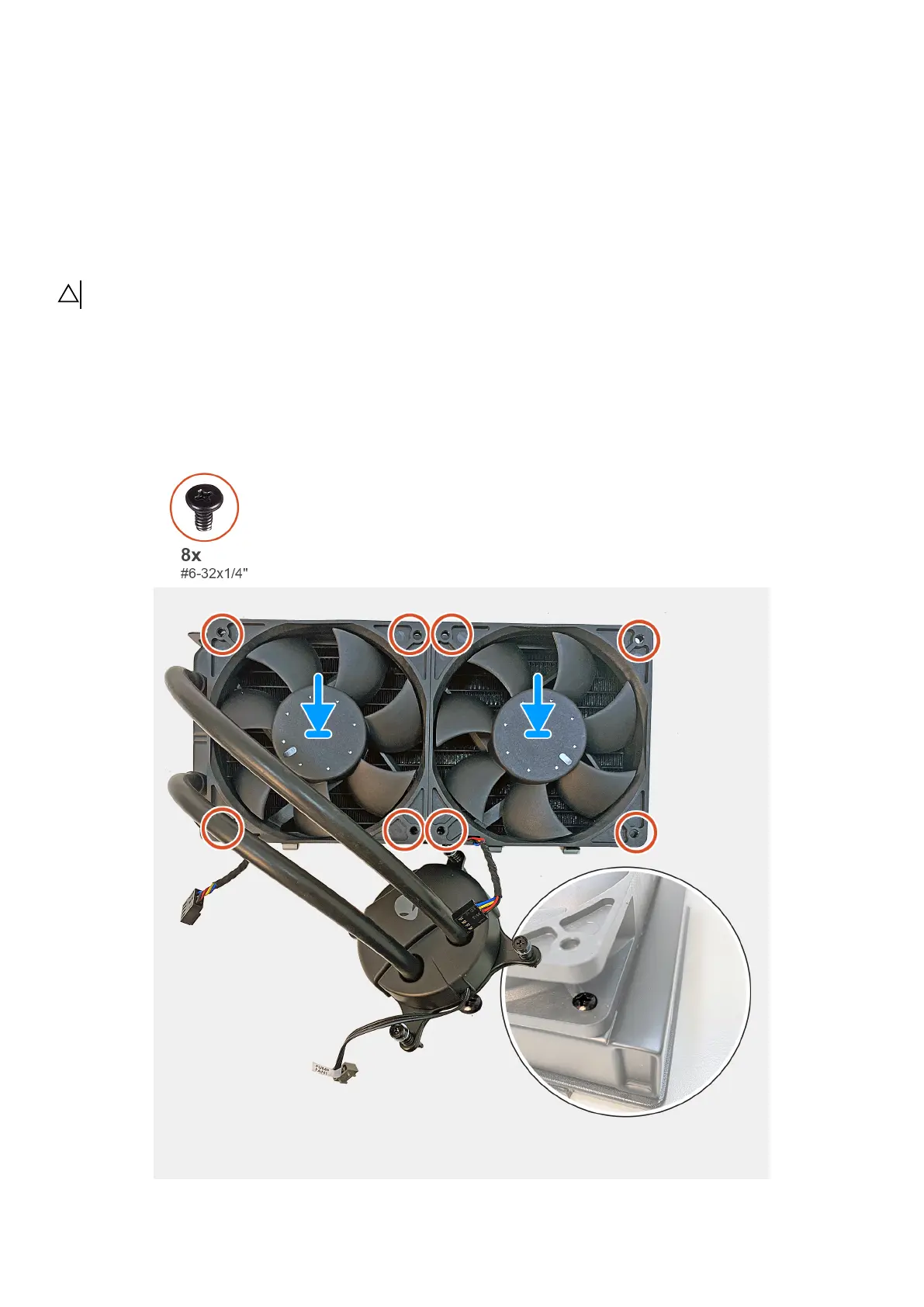

The following images indicate the location of the liquid-cooling assembly fan and provide a visual representation of the installation
procedure.
