2. Loosen the captive screws that secure the VR heat sink to the system board.
3. Repeat the same process for the other VR heat sink.
4. Lift the VR heat sink (2) off the system board.
Installing the VR heat sink
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE: Before installing the new VR heat sink, ensure to remove the protective foil from the thermal pad.
About this task

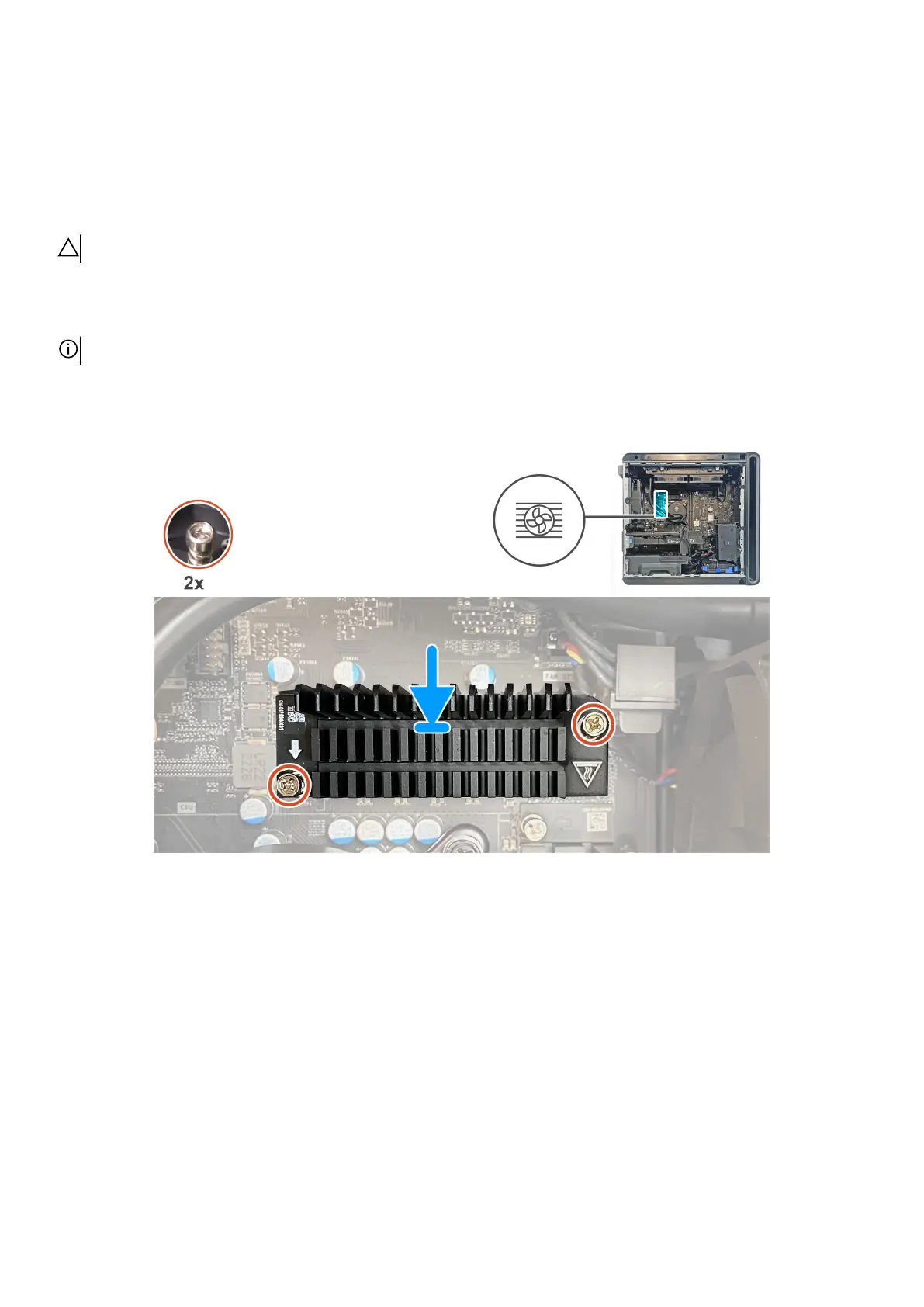

The following images indicate the location of the VR heat sink and provide a visual representation of the installation procedure.
89
