Steps

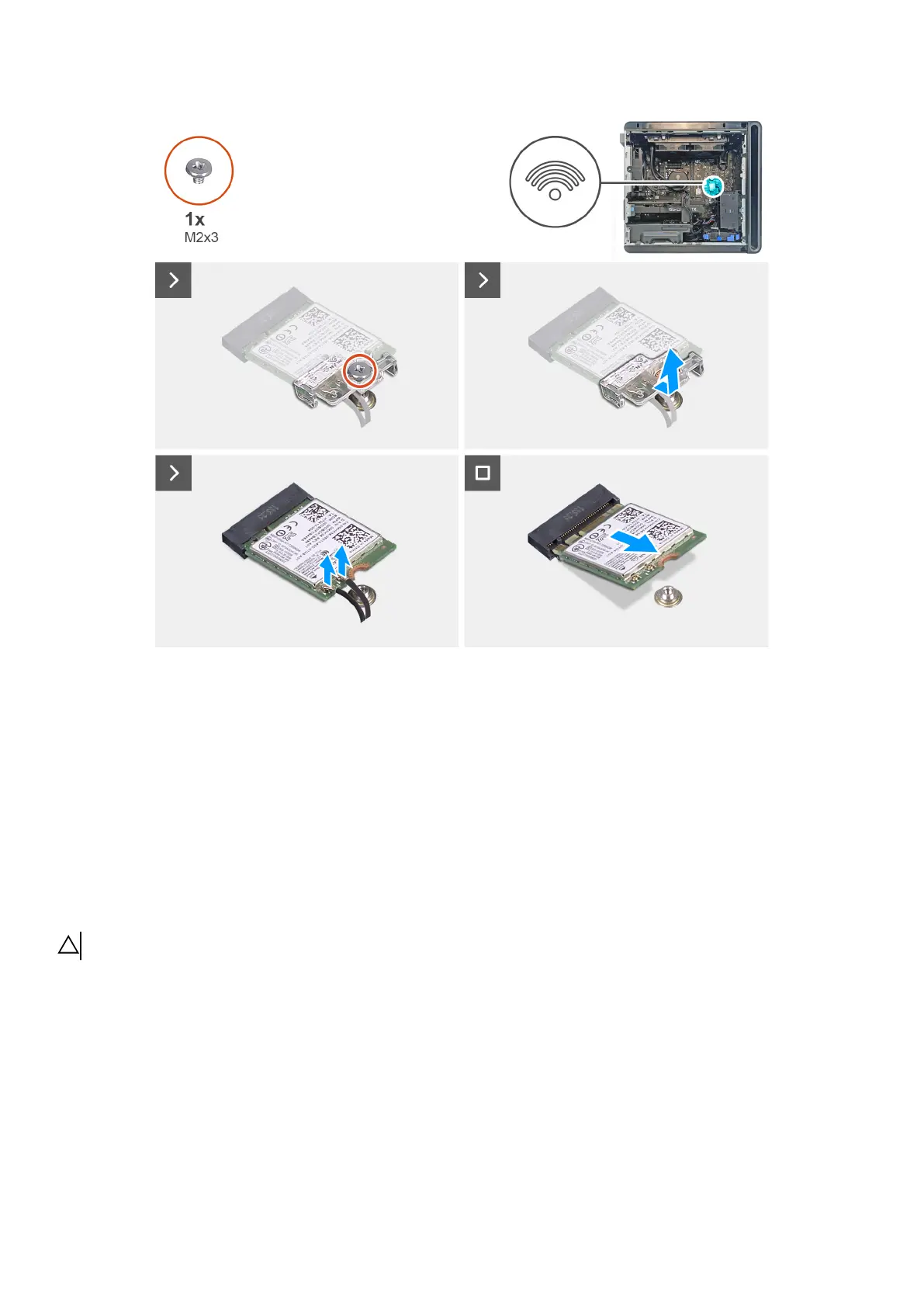

1. Lay the computer on the right side.
2. Remove the screw (M2x3) that secures the wireless card to the system board.
3. Lift the wireless-card bracket off the wireless card.
4. Disconnect the SMA cables from the wireless card.
5. Slide and remove the wireless card from the wireless-card slot.
Installing the wireless card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: To avoid damage to the wireless card, do not place any cables under it.
About this task
The following images indicate the location of the wireless card and provide a visual representation of the installation procedure.
61
