Steps

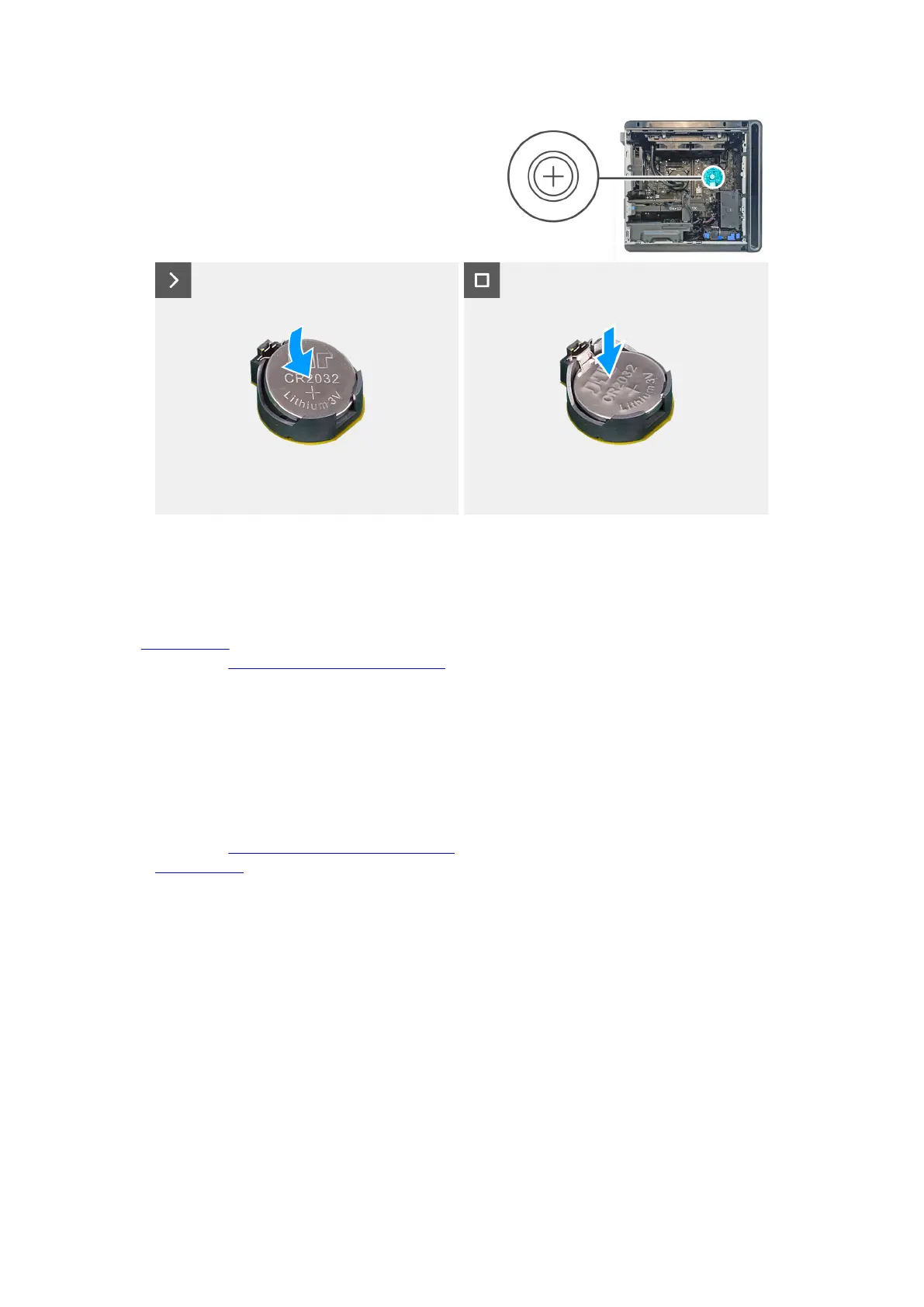

Insert the new coin-cell battery (CR2032) into the battery socket with the positive side facing up, and snap the battery into place.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Memory module
Removing the memory module
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the memory module and provide a visual representation of the removal procedure.
51
