Installing the top-chassis fan
About this task

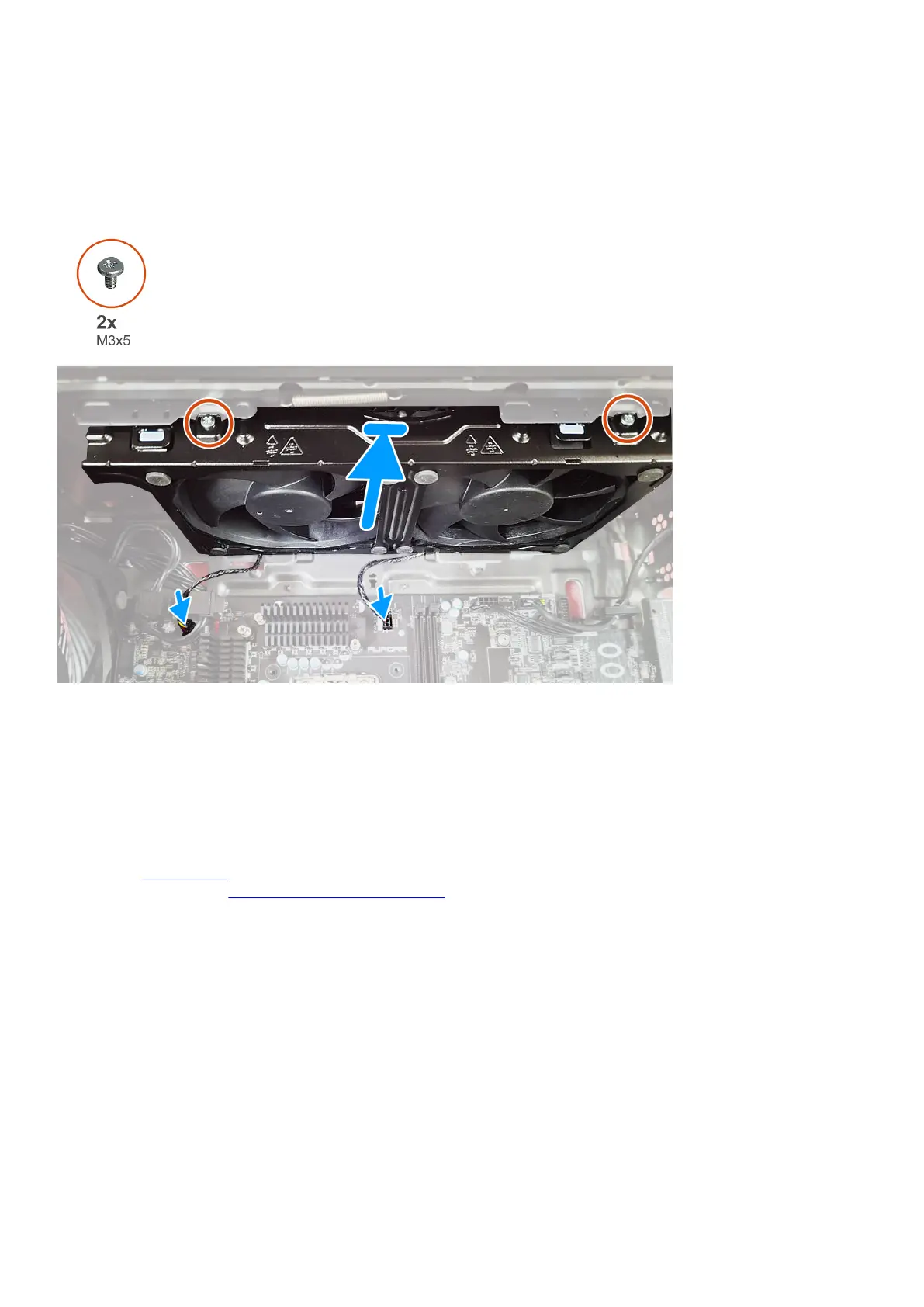

The following images indicate the location of the top-chassis fan and provide a visual representation of the installation procedure.
Steps
1. Lay the computer on the right side.
2. Align and place the top-chassis fan on the chassis.
3. Connect the top-chassis fan cables from the system board.
4. Replace the two screws (M3x5) that secures the top-chassis fan to the chassis.
Next steps
1. Install the
left-side cover.
2. Follow the procedure in After working inside your computer.
