4. Lift the processor fan and heat-sink assembly off the system board.
Installing the processor fan and heat-sink assembly
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
CAUTION: If either the processor or the heat sink is replaced, use the thermal grease that is provided in the kit to ensure
that thermal conductivity is achieved.
About this task

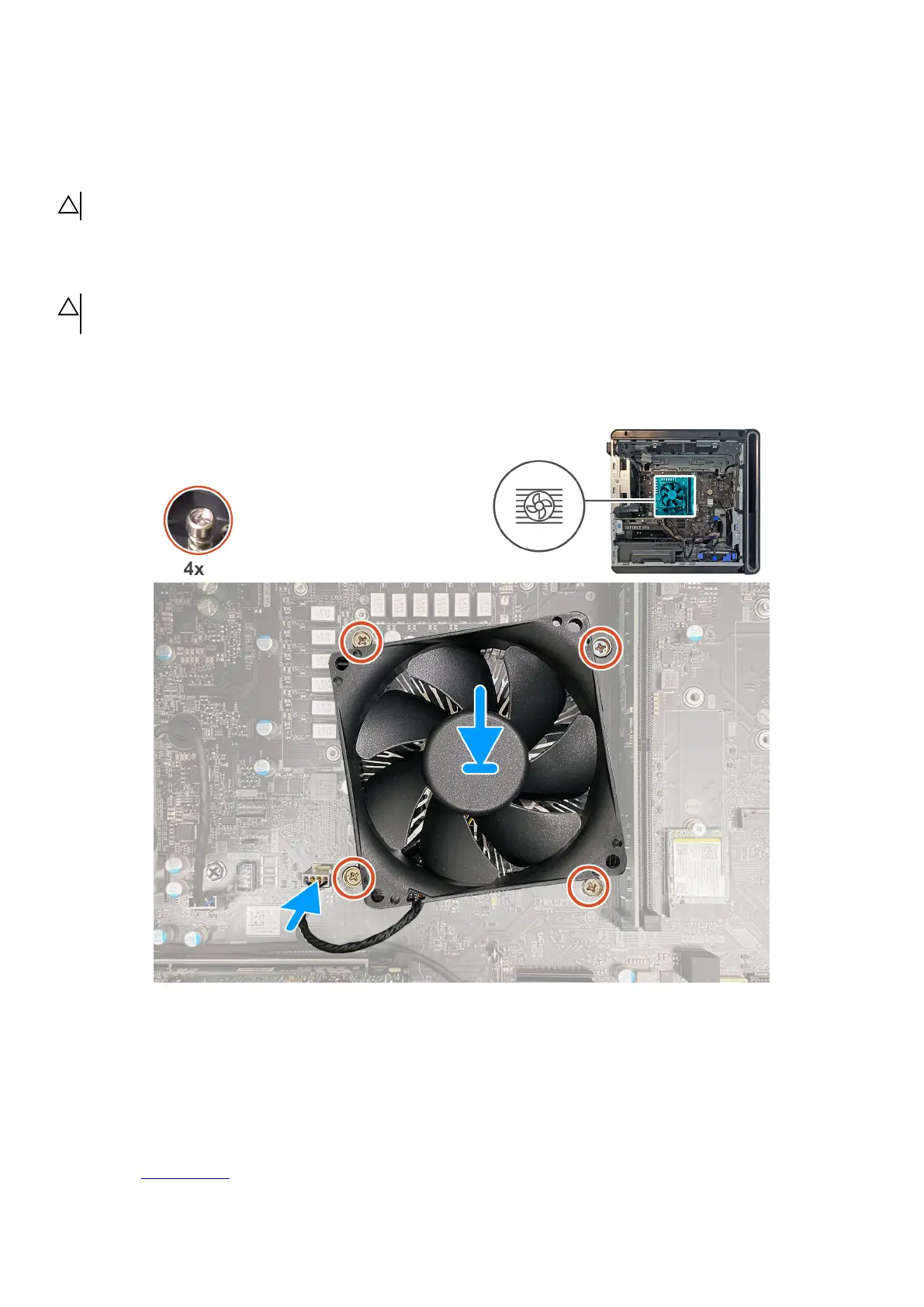

The following images indicate the location of the processor fan and heat-sink assembly and provide a visual representation of the
installation procedure.
Steps
1. Place the processor fan and heat-sink assembly on the processor.
2. Align the captive screws on the processor fan heat-sink assembly with the screw holes on the system board.
3. In sequential order, tighten the four captive screws that secure the processor fan and heat-sink assembly to the system board.
4. Connect the processor-fan cable to the system board.
Next steps
1. Install the left-side cover.
75
