About this task

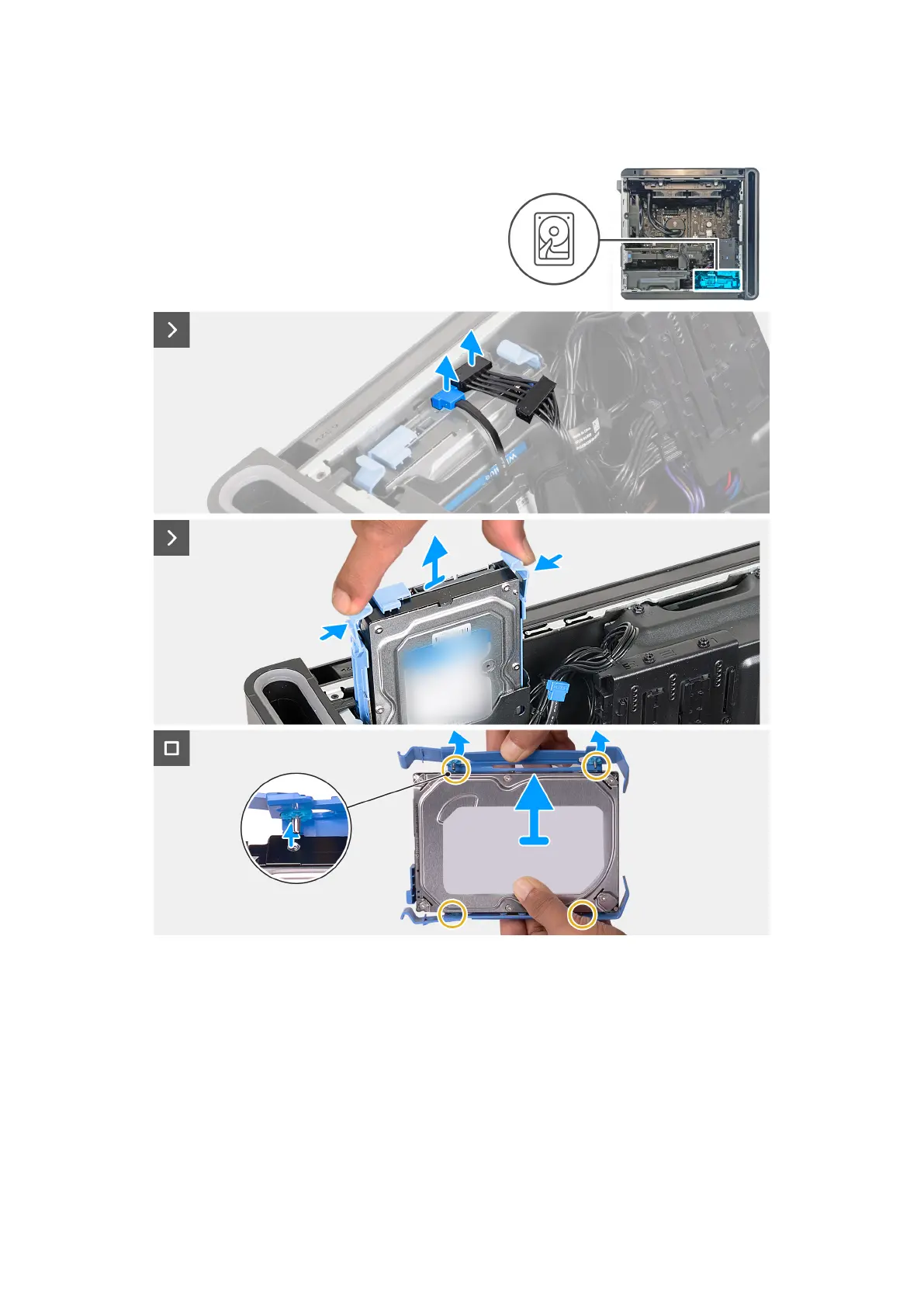

The following images indicate the location of the 3.5-inch hard drive and provide a visual representation of the removal procedure.
Steps
1. Lay the computer on the right side.
2. Disconnect the data and power cables from the hard drive.
3. Press the release tabs on the hard-drive carrier and slide the hard-drive carrier out of the hard-drive cage.
4. Pry the hard-drive carrier to release the tabs on the carrier from the slots on the hard drive.
5. Lift the hard drive out of the hard-drive carrier.
46
