About this task

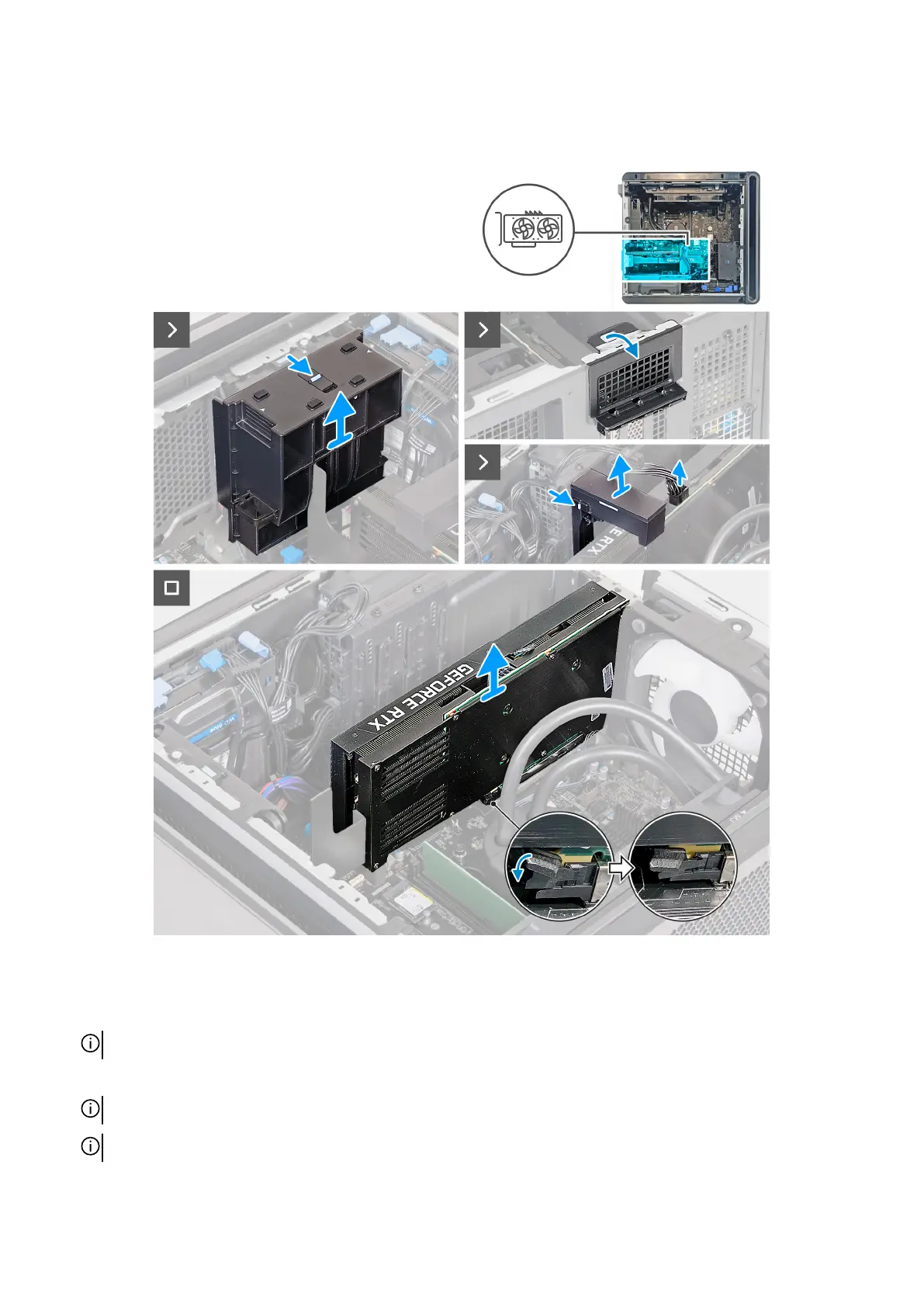

The following images indicate the location of the single-graphics card and provide a visual representation of the removal procedure.
Steps
1. Lay the computer on the right side.
2. Slide the release latch to its unlock position and lift the graphics-card end holder away from the PCIe fan.
NOTE: Skip this step if your graphics card does not ship with a graphics-card end holder.
3. Slide the release latch to its unlock position and lift the graphics-card bracket away from the chassis.
NOTE: Skip this step if your graphics card does not ship with a graphics-card bracket.
NOTE: Some graphics-card bracket removal may require removing a screw.
