About this task

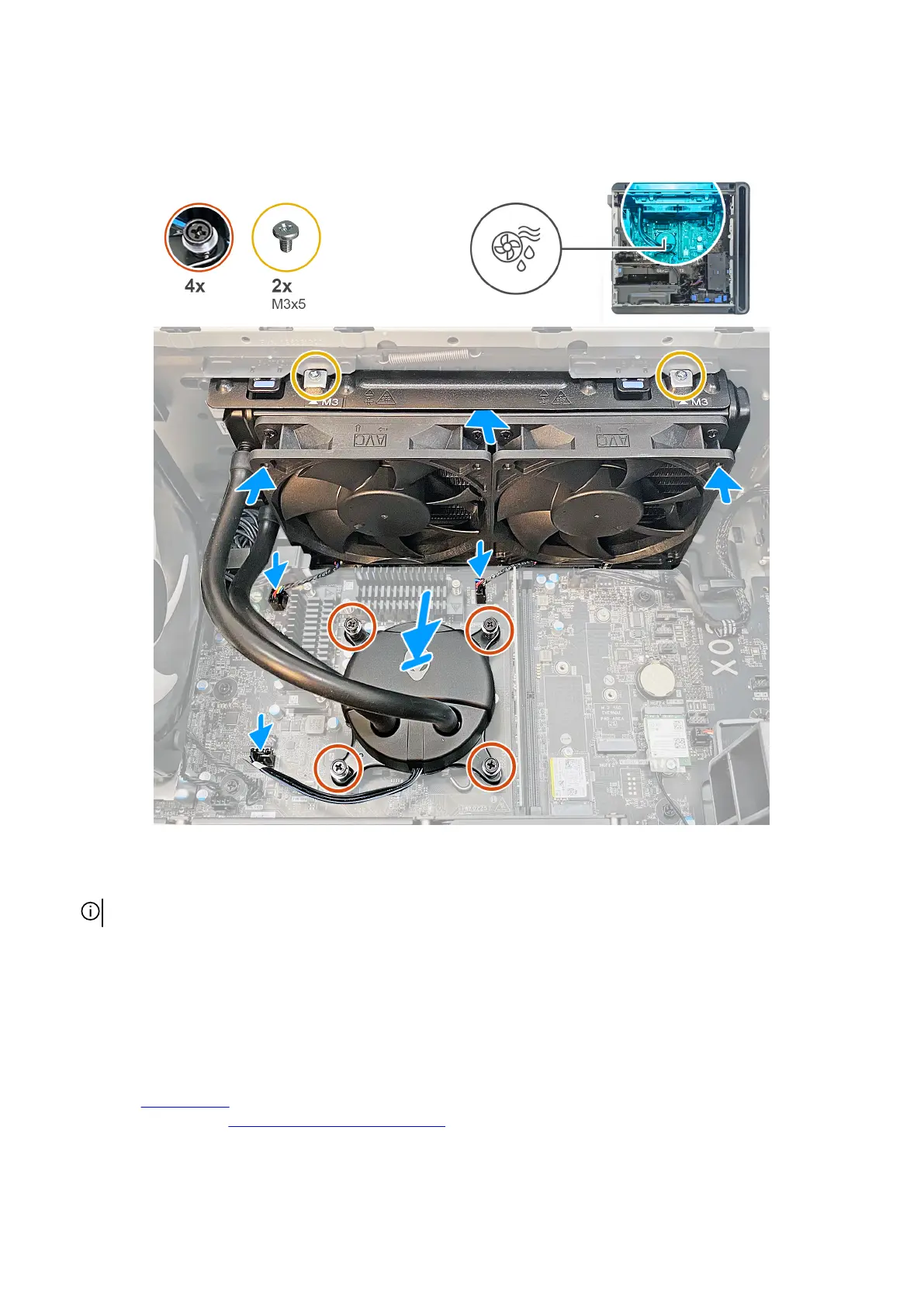

The following images indicate the location of the processor liquid-cooling assembly and provide a visual representation of the
installation procedure.
Steps
1. Align the screw hole of the radiator and fan assembly to the screw hole on the chassis and ensure that the spring latch is locked.
NOTE: Ensure that the hoses are facing the front of the computer.
2. Replace the two screws (M3x5) that secures the radiator and fan assembly to the chassis.
3. Connect the radiator and fan assembly cable to the system board.
4. Align the screw holes on the processor-cooling assembly with the screw holes on the system board.
5. In the sequential order, tighten the four captive screws that secure the processor-cooling assembly to the system board.
6. Connect the processor-cooling assembly cables to the system board.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
78
