32 Graphics-Card Heat Sink Fan
Replacing the Graphics-Card Heat Sink Fan
1
Follow the instructions in "Before You Begin" on page 9.
2
Align the screw holes on the graphics-card heat sink fan with the screw
holes on the chassis.
3
Tighten the three captive screws that secure the graphics-card heat sink
fan to the chassis.
4
Connect the graphics-card heat sink fan cable to the connector on the
system board.
5
Replace the compartment door (see "Replacing the Compartment Door"
on page 16).
6
Replace the battery pack (see "Replacing the Battery Pack" on page 14).
CAUTION: Before turning on the computer, replace all screws and ensure that no
stray screws remain inside the computer. Failure to do so may result in damage to
the computer.

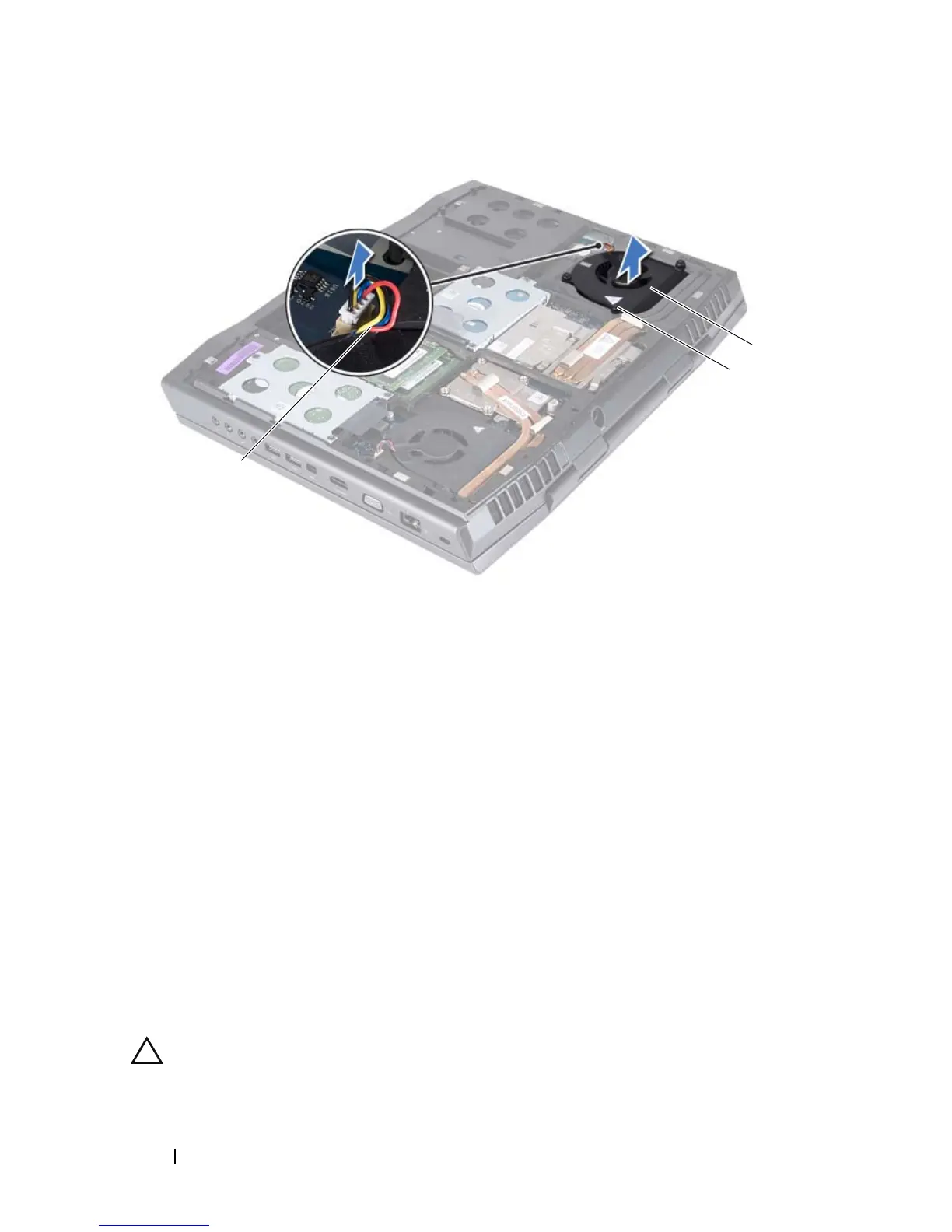

1 graphics-card heat sink fan cable 2 captive screws (3)
3 graphics-card heat sink fan
