38 Processor Heat-Sink Fan
Replacing the Processor Heat-Sink Fan
1
Follow the instructions in "Before You Begin" on page 9.
2
Align the screw holes on the processor heat-sink fan with the screw holes
on the chassis.
3
Tighten the three captive screws that secure the processor heat-sink fan to
the chassis.
4
Connect the processor heat-sink fan cable to the connector on the system
board.
5
Replace the compartment door (see "Replacing the Compartment Door"
on page 16).
6
Replace the battery pack (see "Replacing the Battery Pack" on page 14).

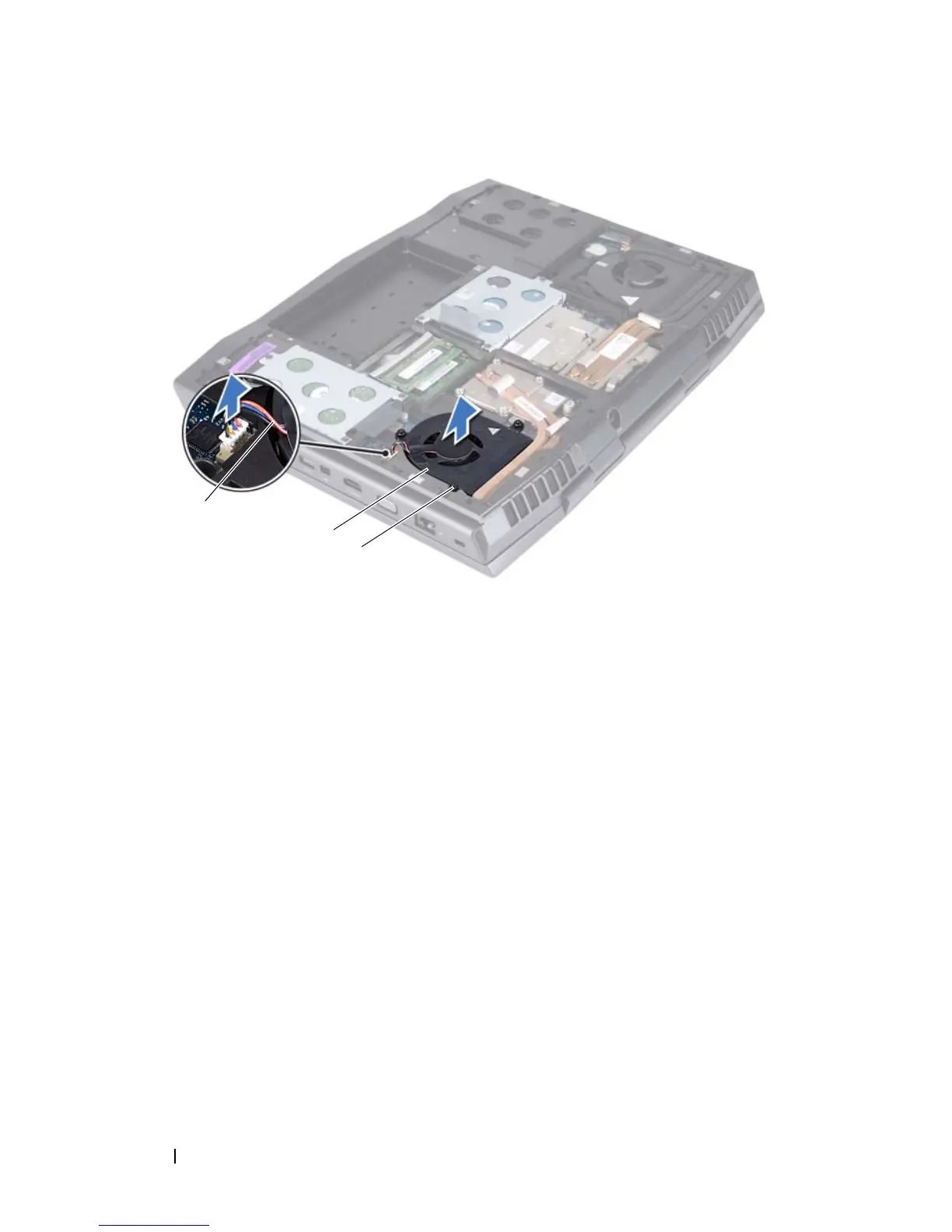

1 processor heat-sink fan cable 2 processor heat-sink fan
3 captive screws (3)
