46 Processor Module
CAUTION: To ensure maximum cooling for the processor module, do not touch the
heat transfer areas on the processor thermal cooling assembly. The oils in your
skin can reduce the heat transfer capability of the thermal pads.
CAUTION: When removing the processor module, lift the module straight up. Be
careful not to bend the pins on the processor module.
7
Lift the processor module from the ZIF socket.
Replacing the Processor Module
NOTE: If a new processor module is installed, you will receive a new
thermal-cooling assembly, which will include an affixed thermal pad, or you will
receive a new thermal pad along with documentation to illustrate proper
installation.
1
Follow the instructions in "Before You Begin" on page 9.

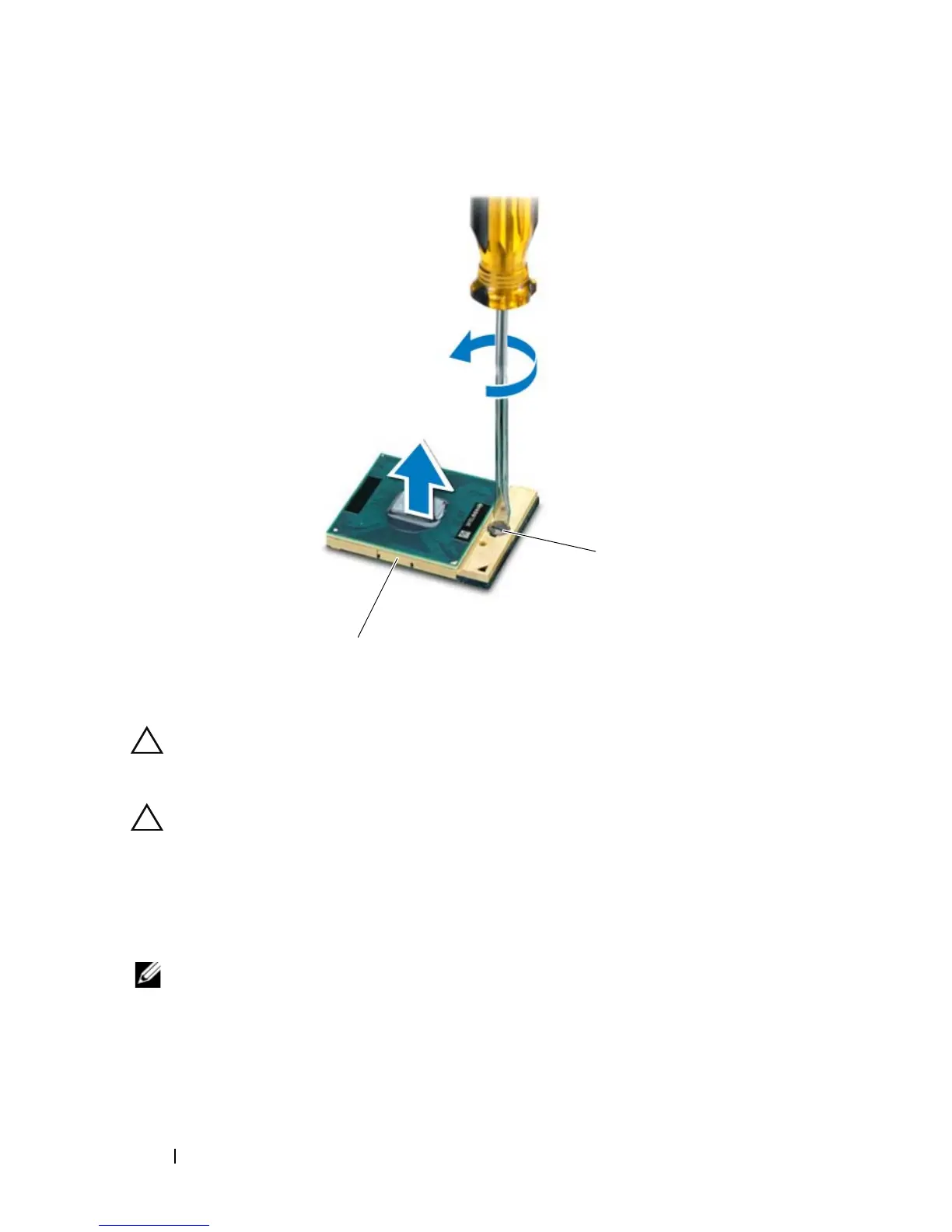

1 ZIF socket 2 ZIF-socket cam screw
