36 Graphics-Card Assembly
Replacing the Graphics-Card Assembly
1
Follow the instructions in "Before You Begin" on page 9.
2
Insert the graphics card connector at a 45-degree angle into the connector
on the system board.
3
Press the other end of the graphics-card assembly down into the slot on the
system board and replace the two screws that secure the graphics-card
assembly to the system board.
4
Replace the graphics-card heat sink fan (see "Replacing the Graphics-Card
Heat Sink Fan" on page 32).
5
Replace the compartment door (see "Replacing the Compartment Door"
on page 16).
6
Replace the battery pack (see "Replacing the Battery Pack" on page 14).
CAUTION: Before turning on the computer, replace all screws and ensure that no
stray screws remain inside the computer. Failure to do so may result in damage to
the computer.

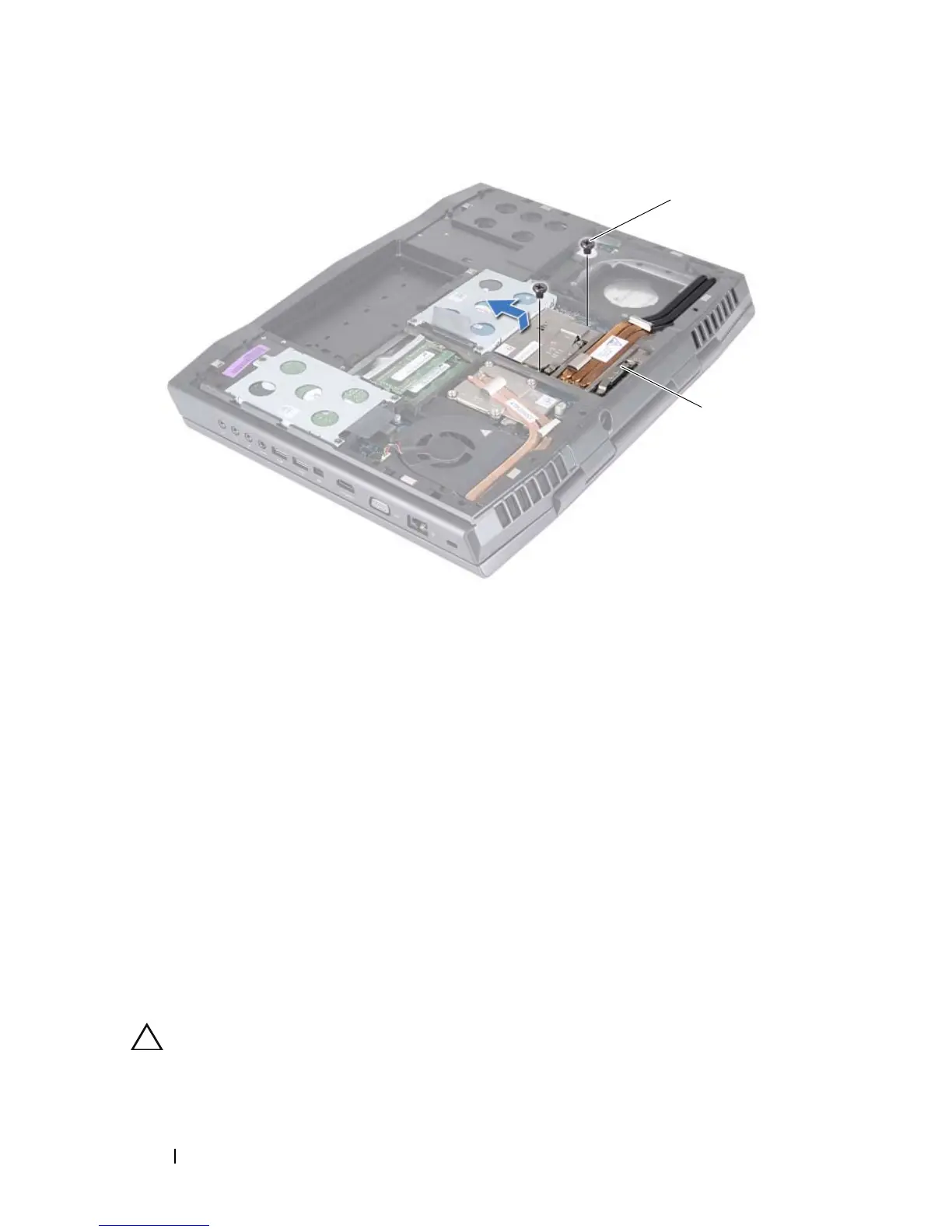

1 graphics-card assembly 2 screws (2)
