64 WirelessHD Card (Optional)
Replacing the WirelessHD Card
1
Follow the instructions in "Before You Begin" on page 9.
2
Remove the new wirelessHD card from its packaging.
CAUTION: Use firm and even pressure to slide the card into place. If you use
excessive force, you may damage the connector.
CAUTION: The connectors are keyed to ensure correct insertion. If you feel
resistance, check the connectors on the card and on the system board, and realign
the card.
3
Insert the wirelessHD card connector at a 45-degree angle into the
connector on the system board.
4
Press the other end of the wirelessHD card down into the slot on the
system board and replace the screw that secures the wirelessHD card to the
system board.
5
Connect the wirelessHD card cable to the connector on the wirelessHD
card.
6
Replace the keyboard (see "Replacing the Keyboard" on page 57).

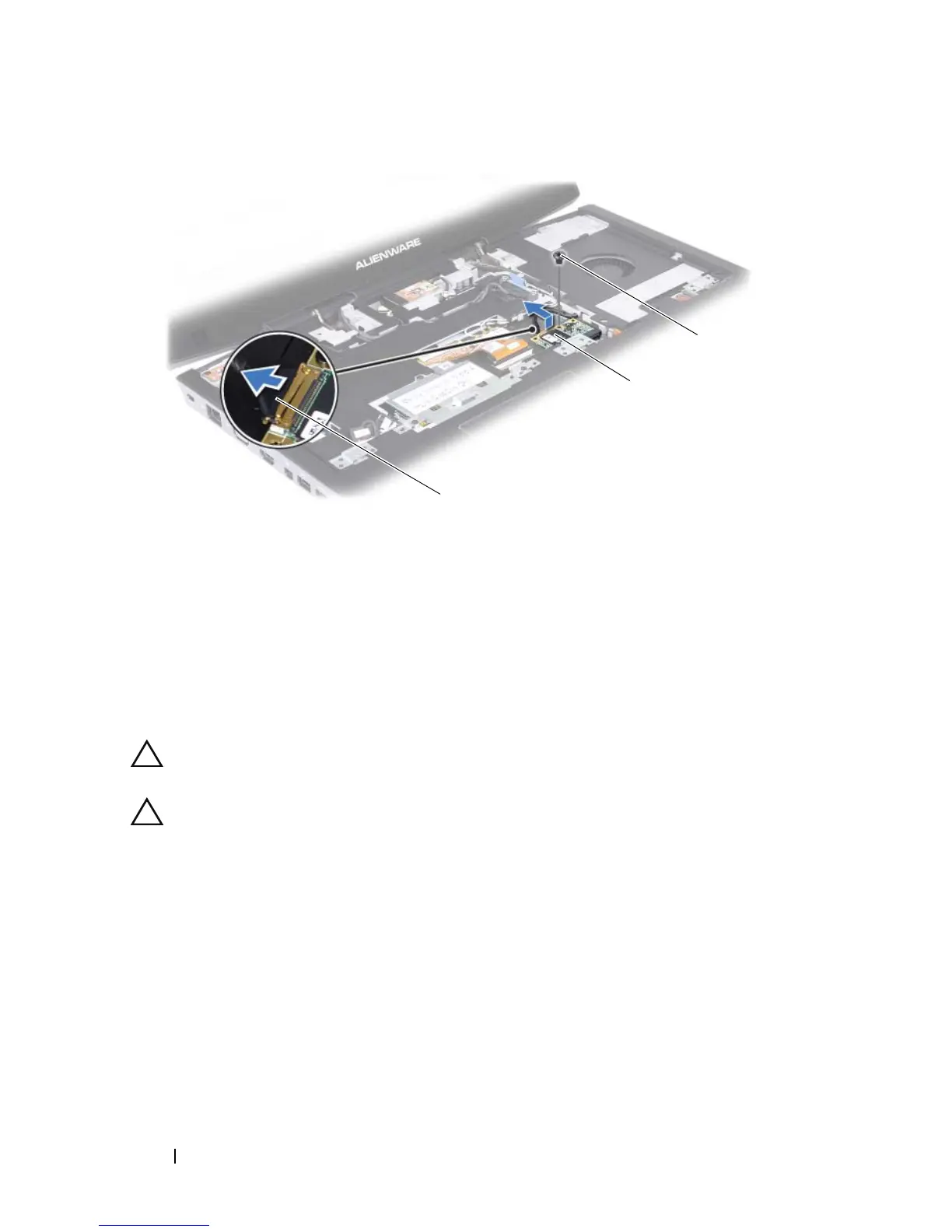

1 wirelessHD card cable 2 wirelessHD card
3 screw
