Center Control Cover 51

CAUTION: Be extremely careful when removing and handling the center control

cover. Failure to do so could result in scratching the display panel.

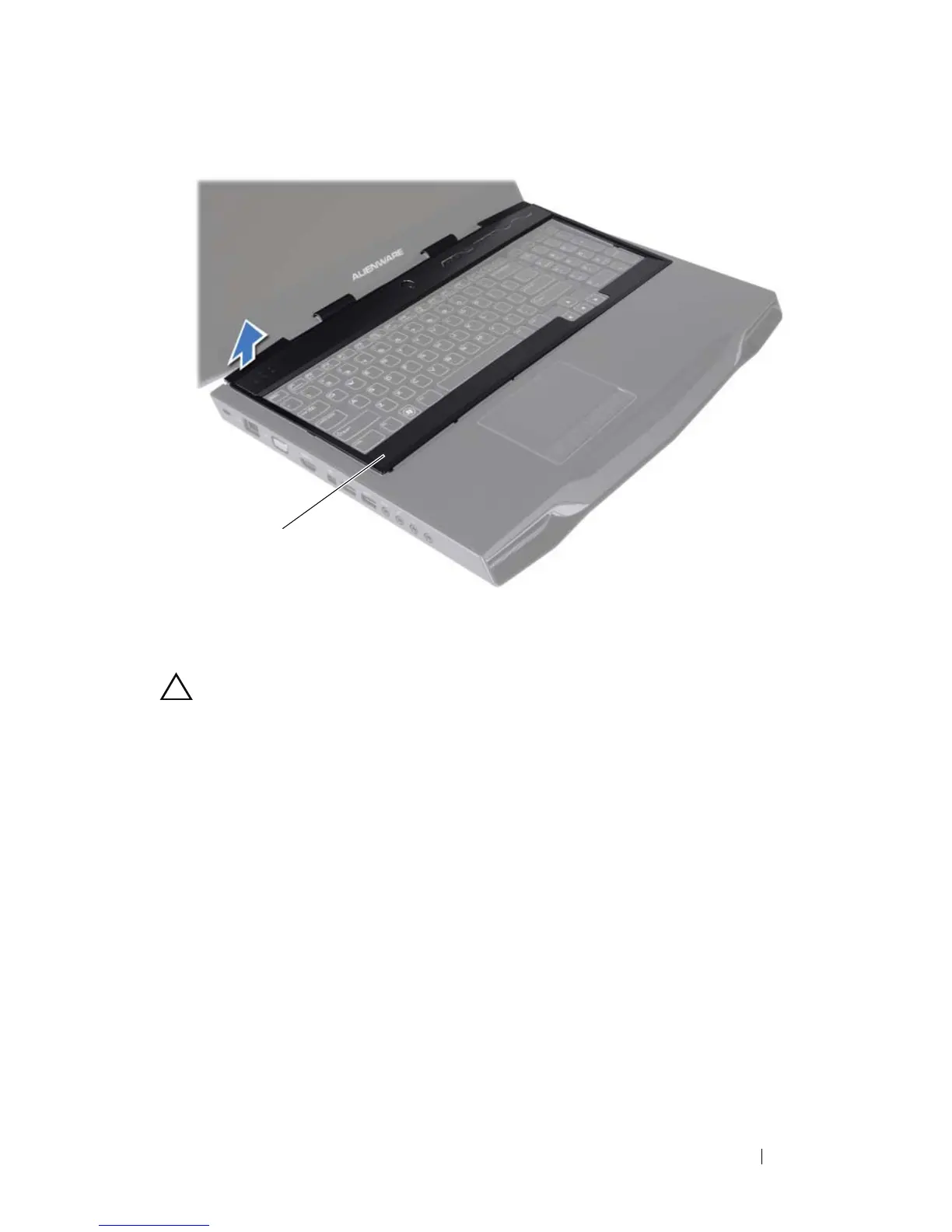

Turn the center control cover towards the display.

Disconnect the media control keys cable from the connector on the system

board.

Lift the center control cover away from the computer.

1 center control cover

Default Chapter3
- Table of Contents3
1 Before You Begin9
- Recommended Tools9
- Turning off Your Computer9
- Before Working Inside Your Computer10
2 Battery Pack13
- Removing the Battery Pack13
- Replacing the Battery Pack14
3 Compartment Door15
- Removing the Compartment Door15
- Replacing the Compartment Door16
4 Coin-Cell Battery17
- Removing the Coin-Cell Battery17
- Replacing the Coin-Cell Battery18
5 Hard Drive(S)19
- Removing the Hard Drive(S)20
- Replacing the Hard Drive(S)22
6 Memory Module(S)25
- Removing the Memory Module(S)25
- Replacing the Memory Module(S)27
7 Graphics-Card Heat Sink Fan31
- Removing the Graphics-Card Heat Sink Fan31
- Replacing the Graphics-Card Heat Sink Fan32
8 Graphics-Card Assembly35
- Removing the Graphics-Card Assembly35
- Replacing the Graphics-Card Assembly36
9 Processor Heat-Sink Fan37
- Removing the Processor Heat-Sink Fan37
- Replacing the Processor Heat-Sink Fan38
10 Processor Heat-Sink41
- Removing the Processor Heat-Sink41
- Replacing the Processor Heat-Sink42
11 Processor Module45
- Removing the Processor Module45
- Replacing the Processor Module46
12 Center Control Cover49
- Removing the Center Control Cover49
- Replacing the Center Control Cover52
13 Keyboard55
- Removing the Keyboard55
- Replacing the Keyboard57
14 Wireless Mini-Card59
- Removing the Mini-Card59
- Replacing the Mini-Card61
15 Wirelesshd Card (Optional)63
- Removing the Wirelesshd Card63
- Replacing the Wirelesshd Card64
16 Power Button Board67
- Removing the Power Button Board67
- Replacing the Power Button Board68
17 Display Assembly71
- Removing the Display Assembly71
- Replacing the Display Assembly73
18 Status Light Board75
- Removing the Status Light Board75
- Replacing the Status Light Board76
19 Palm Rest Assembly79
- Removing the Palm Rest Assembly79
- Replacing the Palm Rest Assembly81
20 Internal Card with Bluetooth Wireless Technology83
- Removing the Bluetooth Card83
- Replacing the Bluetooth Card84
21 Speakers87
- Removing the Speakers87
- Replacing the Speakers88
22 Optical Drive91
- Removing the Optical Drive91
- Replacing the Optical Drive94
23 System Board95
- Removing the System Board95
- Replacing the System Board97
- Entering the Service Tag in the BIOS99
24 System Setup101
- Configuring the System Setup101
25 Flashing the BIOS109
