60 Wireless Mini-Card
7
Remove the screw that secures the Mini-Card to the system board.
8
Lift the Mini-Card out of the connector on the system board.

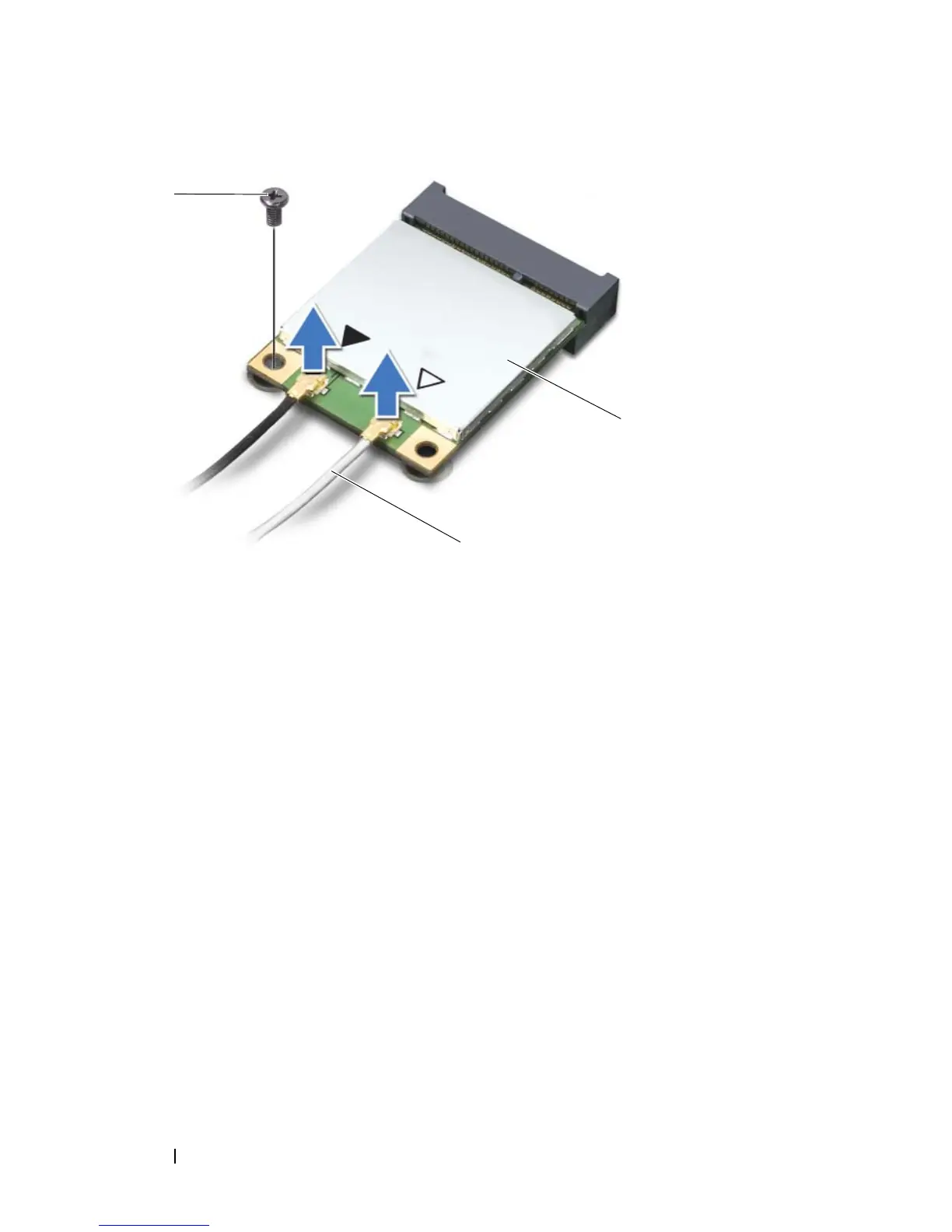

1 screw 2 antenna cables (2)
3 Mini-Card
2
1
3
