Steps

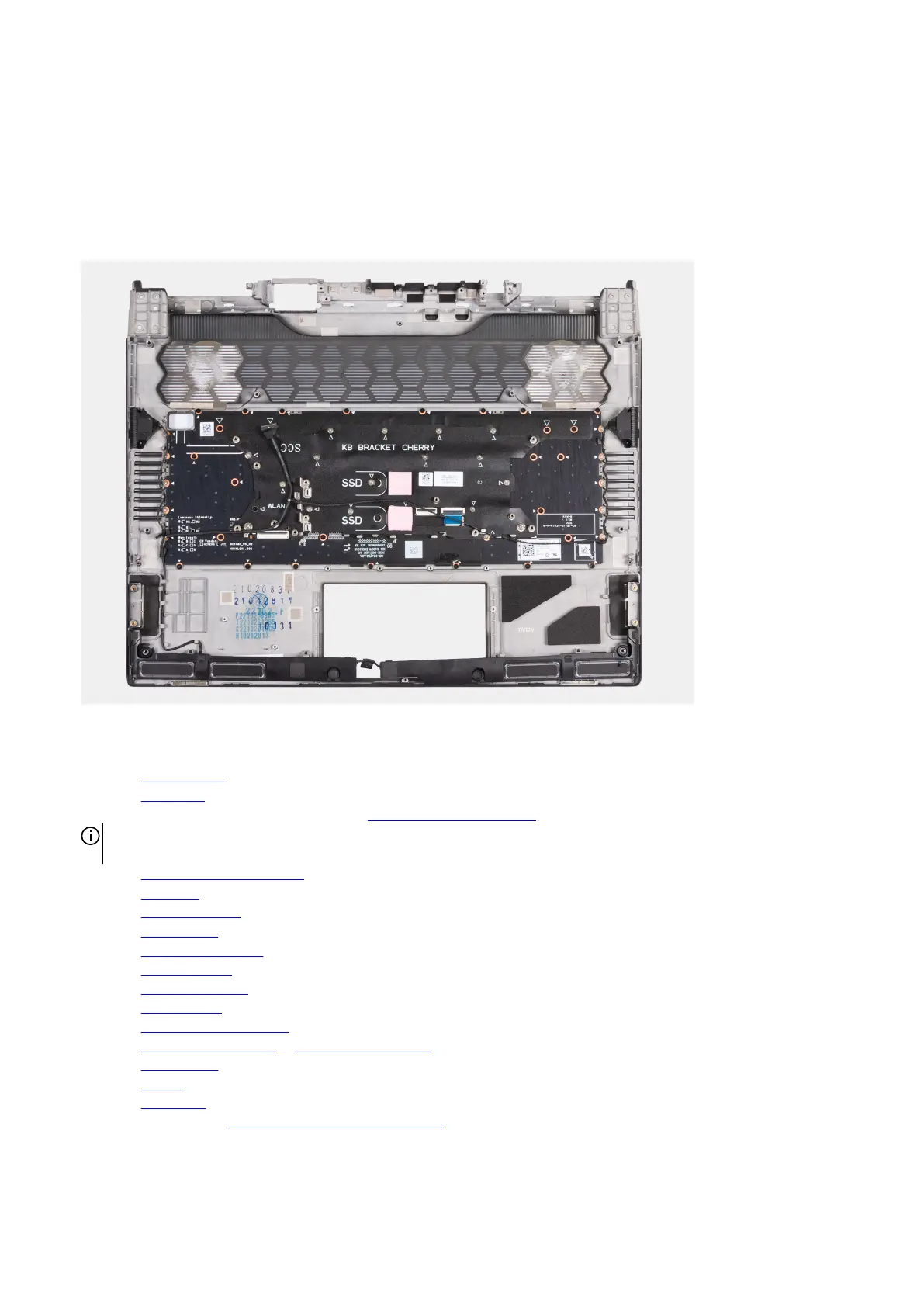

1. Using the alignment posts, place the left and right speakers into their slots on the palm-rest and keyboard assembly.
2. Peel off the protective film to expose the adhesive on back of the tweeters.
3. Align and install the left and right tweeters into their slots on the palm-rest and keyboard assembly as shown in the image.
4. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly as shown in the image.
5. Adhere the tape that secures the speaker cable to the palm-rest and keyboard assembly.
6. After installing the speakers, proceed to perform the post-requisites.
Next steps
1. Install the
power button.
2. Install the
I/O board.
3. Follow the procedure from step 5 to step 22 in Replacing the system board.
NOTE: The system board can be removed and installed along with the heat sink. This simplifies the removal and installation
procedure and avoids breaking the thermal bond between the system board and heat sink.
4. Install the keyboard-controller board.
5. Install the touchpad.
6. Install the display assembly.
7. Install the
headset port.
8. Install the power-adapter port.
9. Install the rear I/O-cover.
10.Install the graphics-card fan.
11. Install the processor fan.
12. Install the solid-state drive bracket.
13. Install the 2230 solid-state drive or 2280 solid-state drive, as applicable.
14. Install the wireless card.
15.Install the battery.
16.Install the
base cover.
17. Follow the procedure in After working inside your computer.
