Dell Chromebook 3100 2-in-1 Service Manual

6. Connect the AC adaptor into the device to recover the battery from cutoff mode.
Next steps
1. Install the base cover.
2. Install the microSD card.
3. Follow the procedure in after working inside your computer.
Speaker

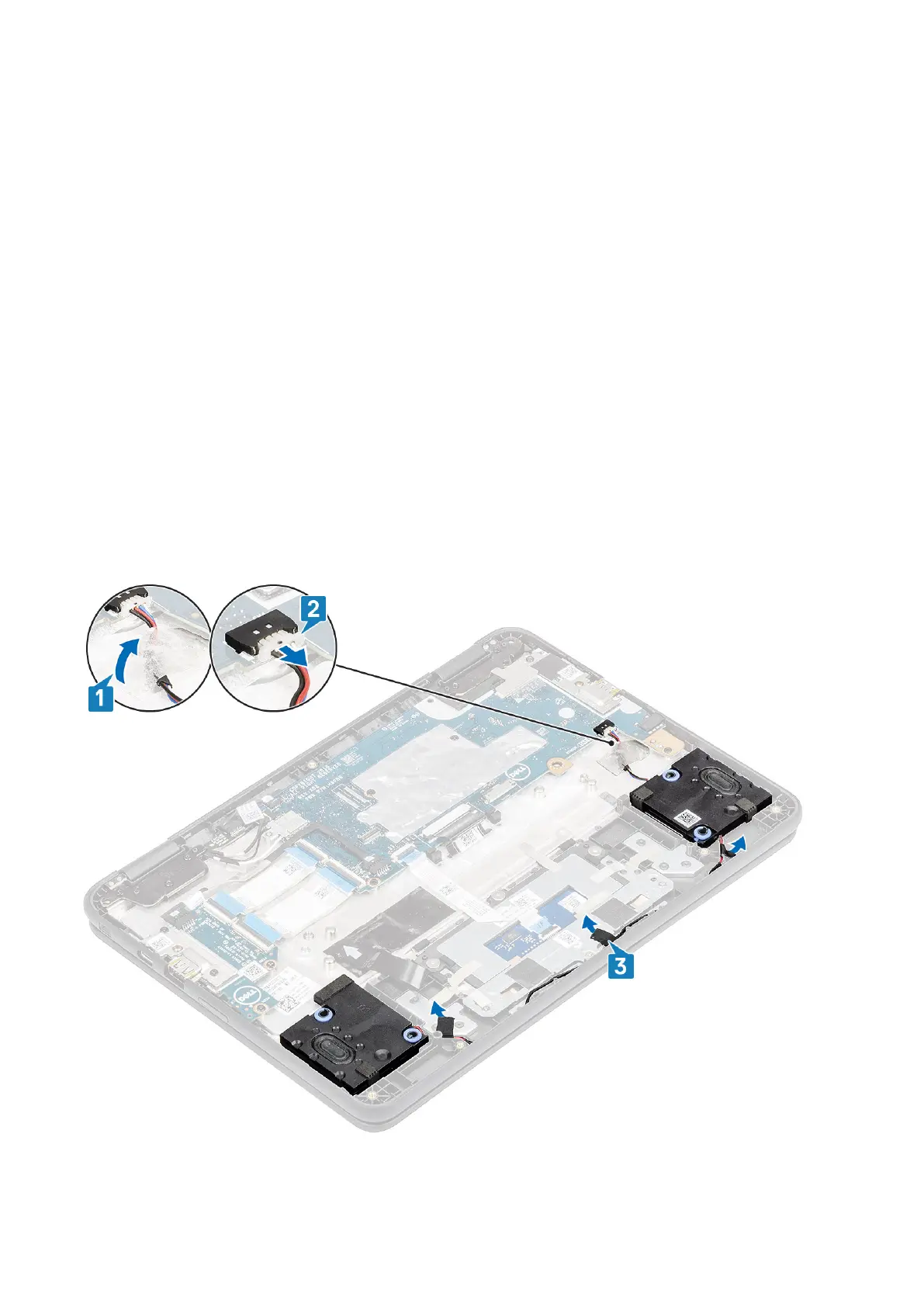

Removing the speakers
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
Steps
1. Peel the adhesive tape that secures the speaker cable to the palmrest [1].
2. Disconnect the speaker cable from the connector on the system board [2].
3. Peel the adhesive tape that secures the speaker cable to the palmrest [3].
4. Unroute the cable from retention clips in the routing channel.
Removing and Installing
25

Dell Chromebook 3100 2-in-1 Specifications

General

RAM	4GB LPDDR4
Storage	32GB eMMC
Display	11.6-inch HD (1366 x 768) Touchscreen
Graphics	Intel UHD Graphics 600
Operating System	Chrome OS
Battery Life	Up to 10 hours
Camera	720p HD Webcam
Color	Black
Processor	Intel Celeron N4020
Ports	2 x USB-C, 1 x MicroSD card reader, 1 x Headphone/Mic combo jack
Wireless	Bluetooth 5.0
