Dell Chromebook 3100 2-in-1 Service Manual

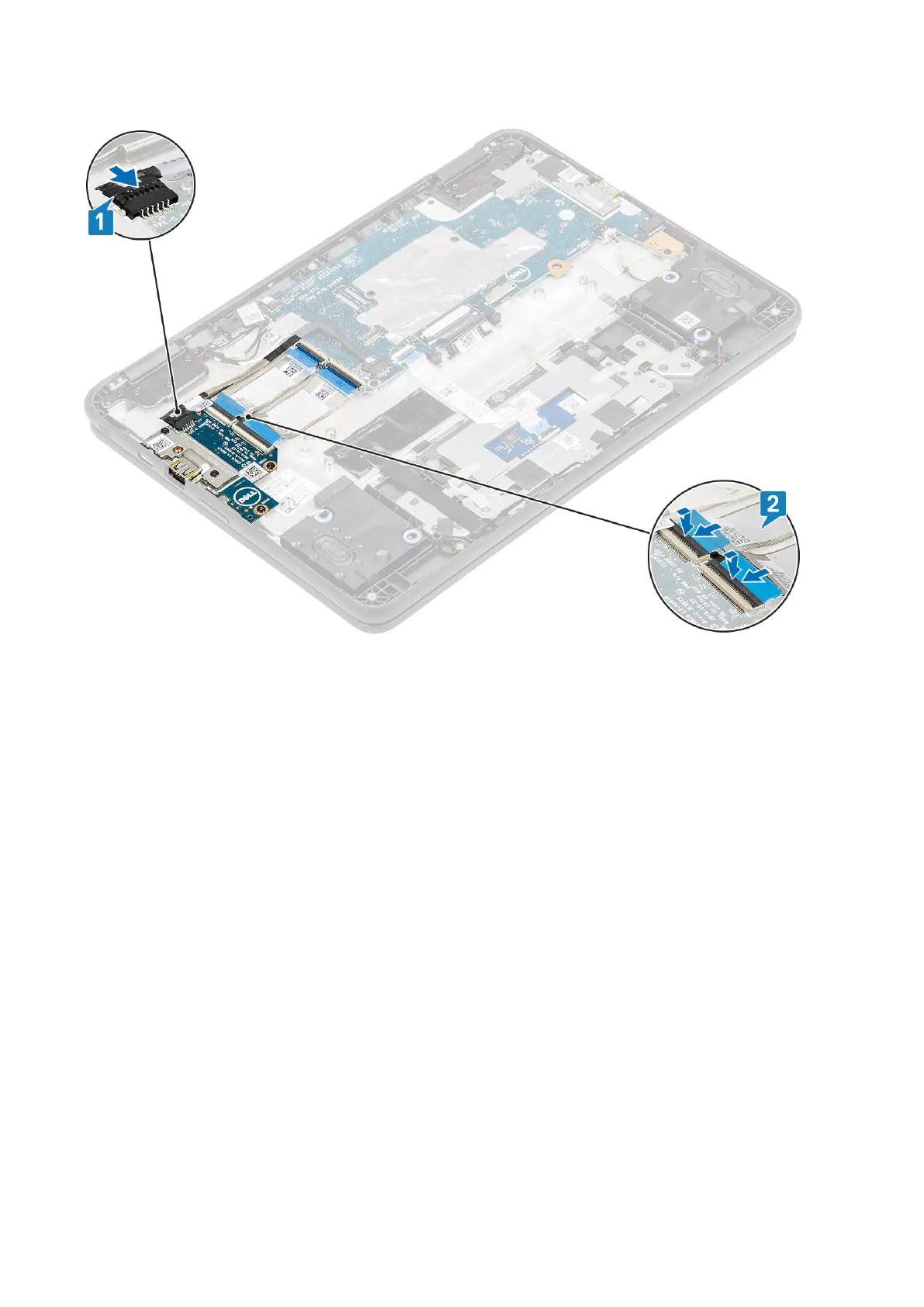

5. Connect the 30-pin and 40-pin IO board cables and close the latch to secure it to the IO board [2].
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the microSD card.
4. Follow the procedure in after working inside your computer.
Keyboard lattice and Keyboard
Removing the keyboard
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the microSD card.
3. Remove the base cover.
4. Remove the battery.
Steps
1. Disconnect the keyboard cable from the connector on the system board [1].
2. Lift the computer and open the LCD fully [2].
34
Removing and Installing

Dell Chromebook 3100 2-in-1 Specifications

General

RAM	4GB LPDDR4
Storage	32GB eMMC
Display	11.6-inch HD (1366 x 768) Touchscreen
Graphics	Intel UHD Graphics 600
Operating System	Chrome OS
Battery Life	Up to 10 hours
Camera	720p HD Webcam
Color	Black
Processor	Intel Celeron N4020
Ports	2 x USB-C, 1 x MicroSD card reader, 1 x Headphone/Mic combo jack
Wireless	Bluetooth 5.0
