Installing system board
Steps

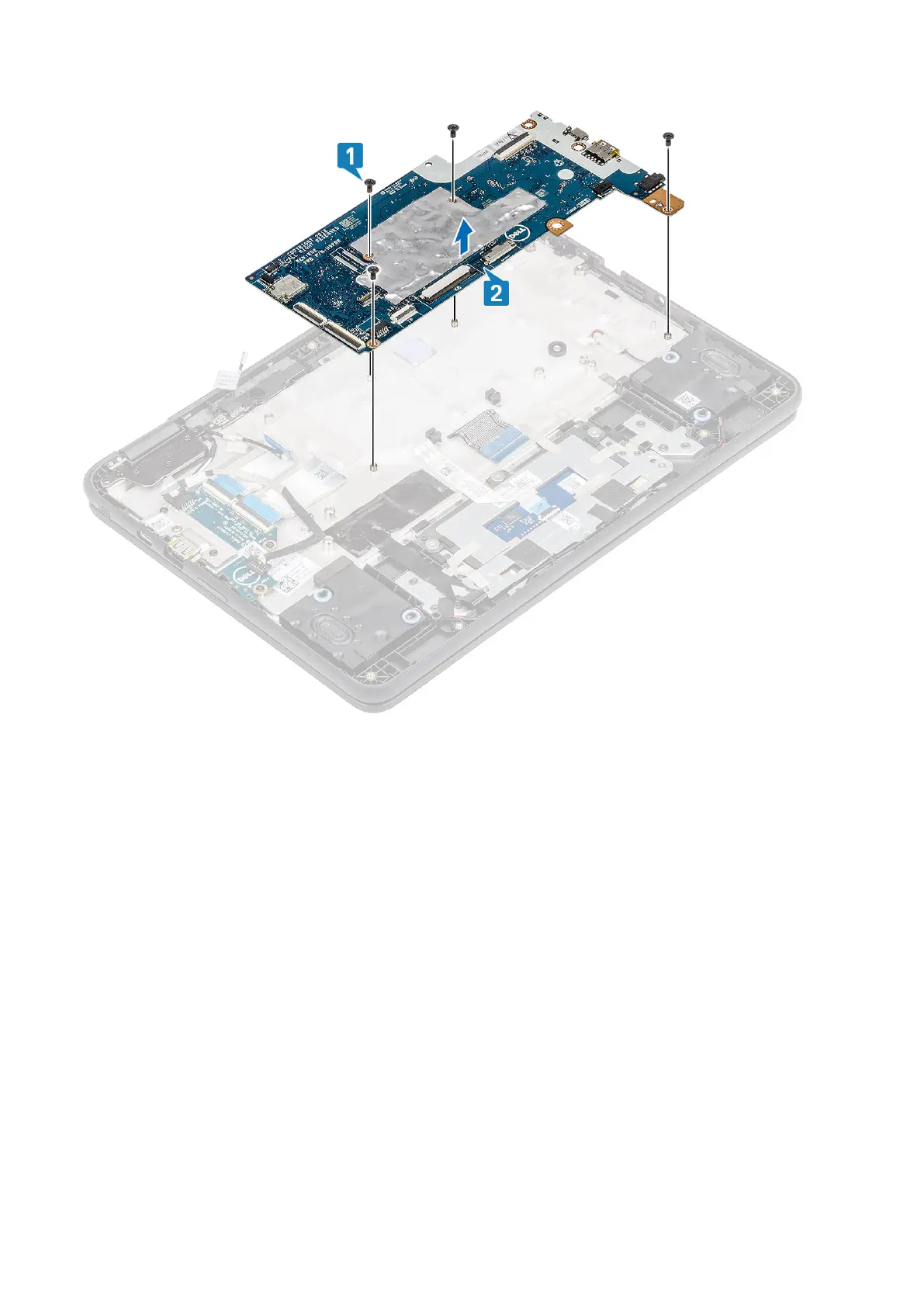

1. Align the screw holes on the system board with the screw holes and slide the system board on the computer [1].
2. Replace the four (M2.0x4.0) screws to secure the system board to the palmrest [2].
Removing and Installing
43
