Dell Chromebook 3100 2-in-1 Service Manual

Installing the keyboard
Steps

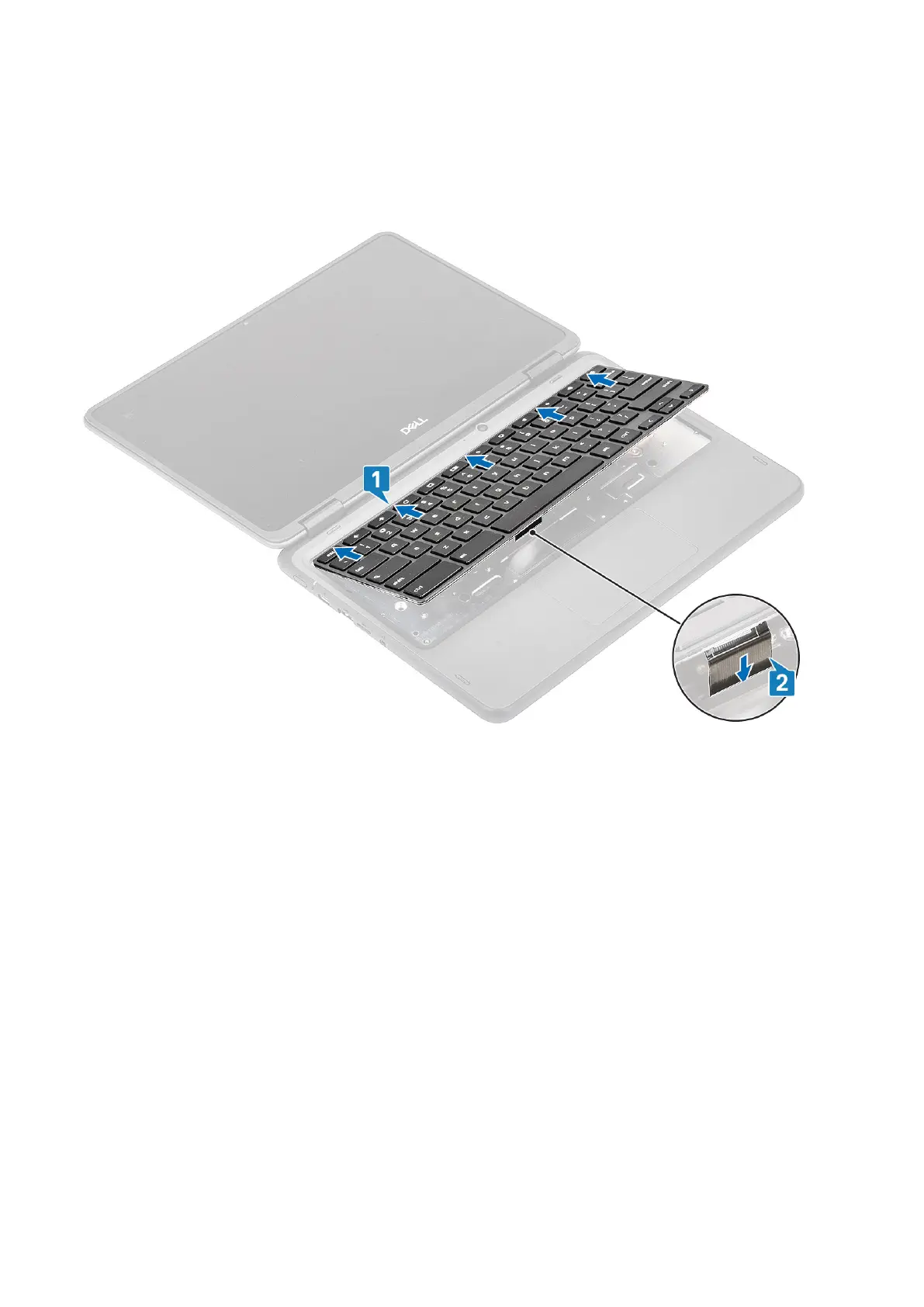

1. Align the keyboard trim with the tabs on the system, and carefully lift the keyboard slightly and insert the keyboard cable through the
gap on the palm rest [1, 2]
2.
Press the keyboard until it clicks into place and then close the LCD fully before turning the system over [1, 2]
Removing and Installing
37

Dell Chromebook 3100 2-in-1 Specifications

General

RAM	4GB LPDDR4
Storage	32GB eMMC
Display	11.6-inch HD (1366 x 768) Touchscreen
Graphics	Intel UHD Graphics 600
Operating System	Chrome OS
Battery Life	Up to 10 hours
Camera	720p HD Webcam
Color	Black
Processor	Intel Celeron N4020
Ports	2 x USB-C, 1 x MicroSD card reader, 1 x Headphone/Mic combo jack
Wireless	Bluetooth 5.0
