Dell Chromebook 3100 2-in-1 - Installing Display Assembly

Installing display assembly
Steps
1. Place the chassis on a plane surface.

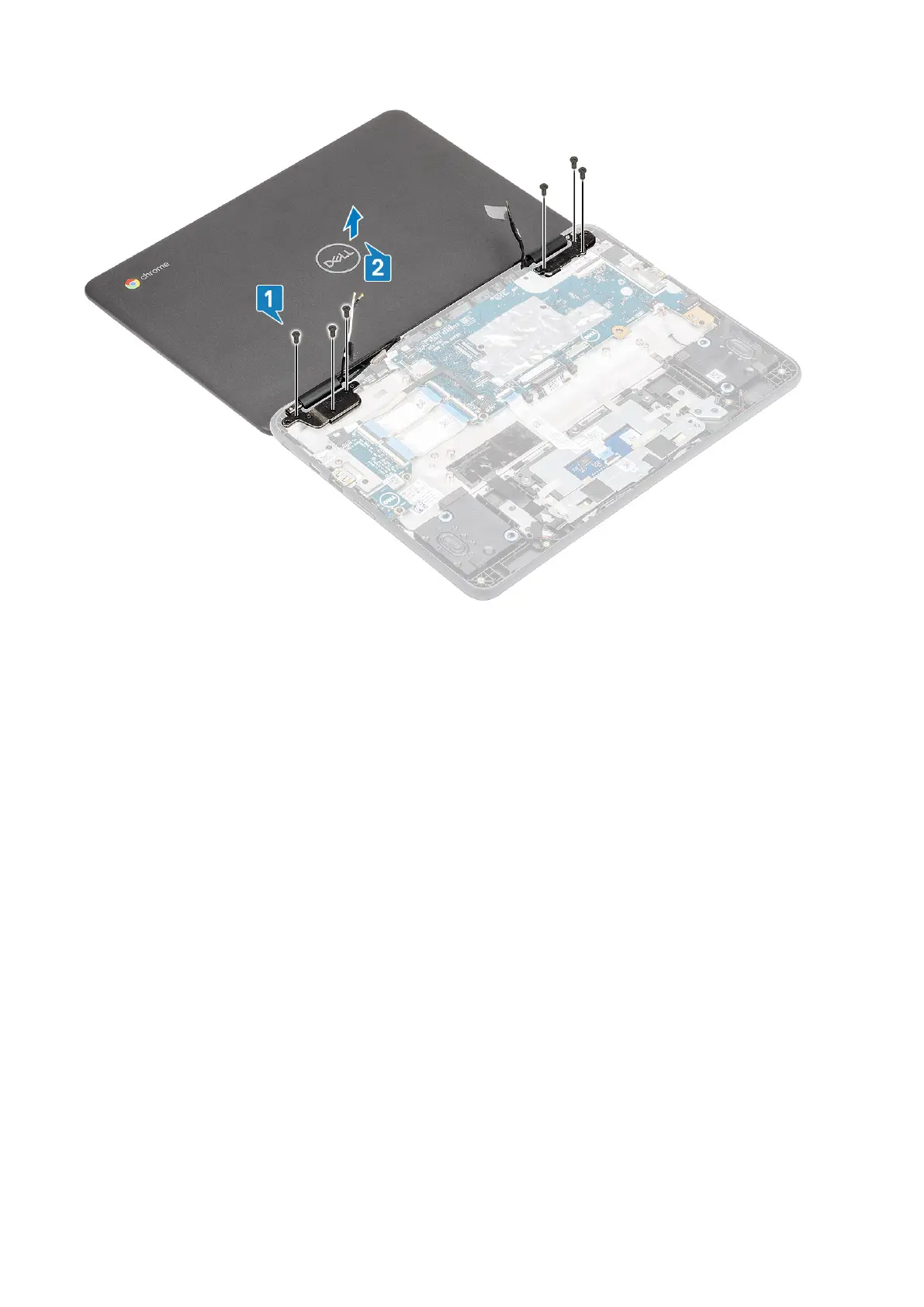

2. Align the display assembly with the screw holders on the system [1].
3. Replace the six (M2.5x5.0) display hinge bracket screws that secure the display assembly to the system [2].
Removing and Installing
53
