Dell Chromebook 3100 2-in-1 Service Manual

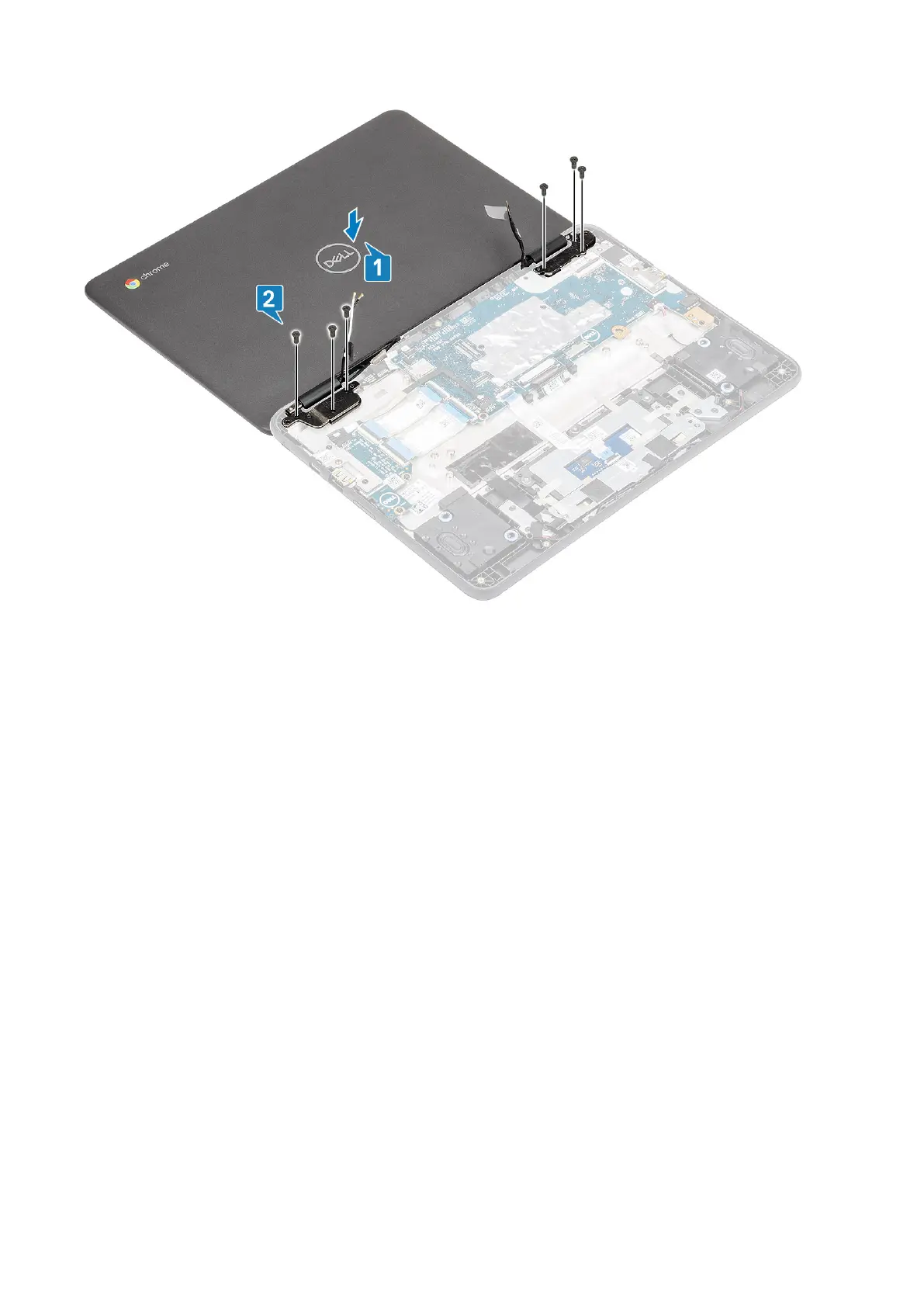

4. Lift the system and close the display.
5. Connect the display cable to the connector on the system board [1].
6. Affix the adhesive tape to secure the display cable to the system [2].
7. Place the display cable bracket to secure the display cable [3].
8. Replace the single (M2.0x4.0) screw that secures the display cable bracket to the system [4].
54
Removing and Installing

Dell Chromebook 3100 2-in-1 Specifications

General

RAM	4GB LPDDR4
Storage	32GB eMMC
Display	11.6-inch HD (1366 x 768) Touchscreen
Graphics	Intel UHD Graphics 600
Operating System	Chrome OS
Battery Life	Up to 10 hours
Camera	720p HD Webcam
Color	Black
Processor	Intel Celeron N4020
Ports	2 x USB-C, 1 x MicroSD card reader, 1 x Headphone/Mic combo jack
Wireless	Bluetooth 5.0
